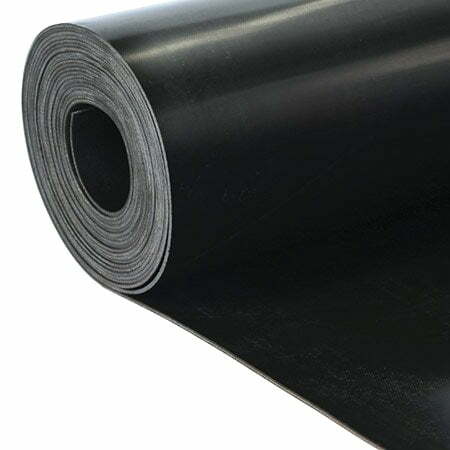

Neoprene Diaphragm Sheeting

Item Code: RC0312-1PLY

Material:Neoprene / Nylon insert (1 ply)
Roll width:1.5m
Roll lengths:10m, 20m
Thicknesses:1.5mm – 6mm
Hardness (Shore A):60°
Colour:Black

from £320.94

Clear

Key Features & Benefits

  • Unbeatable durability in dynamic applications requiring extra strength
  • Excellent tear and stretch resistance
  • Good flexibility
  • Moderate oil resistance
  • Wide functioning temperature range
  • UV stable
  • Good weathering and Ozone resistance

Product Information

Excellent Durability | Neoprene Diaphragm Sheeting

Our neoprene diaphragm sheeting offers exceptional durability as well as strength for highly demanding applications. We reinforce this product with high strength, 1 ply nylon fabric, which provides our product with additional strength and stability. These diaphragm sheets are available in widths of 1.5m and lengths of either 1om or 20m as standard. We can also supply this product in thicknesses ranging from 1.5mm – 6mm. This gives you greater control over the type of protection or sealing your application requires.

The superior strength that our neoprene diaphragm sheets offer, provides our product with excellent anti-creep and flexing resistance. This makes our sheeting the ideal solution for many sealing, insulating as well as isolating applications. Aside from featuring excellent durability our neoprene diaphragm sheeting also provides great tear and stretch resistance. Many of our customers use this product as a sealing material in pumps, valves and air control equipment. However, our diaphragm sheets are incredibly versatile due to the highly desirable properties the product offers.

If you haven’t found the product that you are looking for, click here to view our full range of sheeting products.

Highly Durable Construction

We manufacture our neoprene diaphragm sheeting from a combination of high quality neoprene with a 1 ply nylon cloth insert. This provides you with many of the useful properties found in neoprene with the additional strength of nylon. Neoprene features a wide functioning temperature range from -30°C to +120°C. This ensures that our sheeting is able to withstand extreme high and low temperatures, while maintaining its properties. Neoprene is also resistant to deterioration from water as well as oils, which helps to increase the life expectancy of the product.

Shipping Information

We ship our Neoprene diaphragm sheeting directly to you from our warehouse in the United Kingdom. We supply this particular product in a roll format to allow for easy handling. Our specialist staff quality test all products before sending orders out for delivery. This ensures that you only get the best quality products possible.

Technical Data

PropertiesValues
ApplicationsSealing material in pumps, Valves and air control equipment, Flexible strip, Pad or Gasket for Sealing, Insulating, Isolating applications.
ProductNeoprene Diaphragm Sheeting
MaterialNeoprene, 1 ply Nylon insert
Resistant to Stretching, Tearing, Flexing, Water, Oil
ColourBlack
CompoundCR – 1ply
Elongation At Break350%
Tensile Strength13.0 MPa
Density1.3
Hardness (Shore A)60°
Maximum temperature120°C
Minimum temperature-30°
Compression Set 70°C for 22 hours – %25
Standard Roll SizesWeight (kg/M2)
1.5mm x 1.5m x 20m
2mm x 1.5m x 20m
2.5mm x 1.5m x 20m
3mm x 1.5m x 10m
5mm x 1.5m x 10m
6mm x 1.5m x 10m
1.95
2.6
3.25
3.9
6.5
7.8

PDFs



Datasheet
