RC-I1686 - Claytonrite Weatherstrip Glazing Seal – 33mm x 23mmRC-I1686 - Claytonrite Weatherstrip Glazing Seal – 33mm x 23mm

Claytonrite Weatherstrip Glazing Seal – 33mm x 23mm

Item Code: RC-I1686

To fit panel: 6mm
To fit glass: 6mm
Material:Solid EPDM

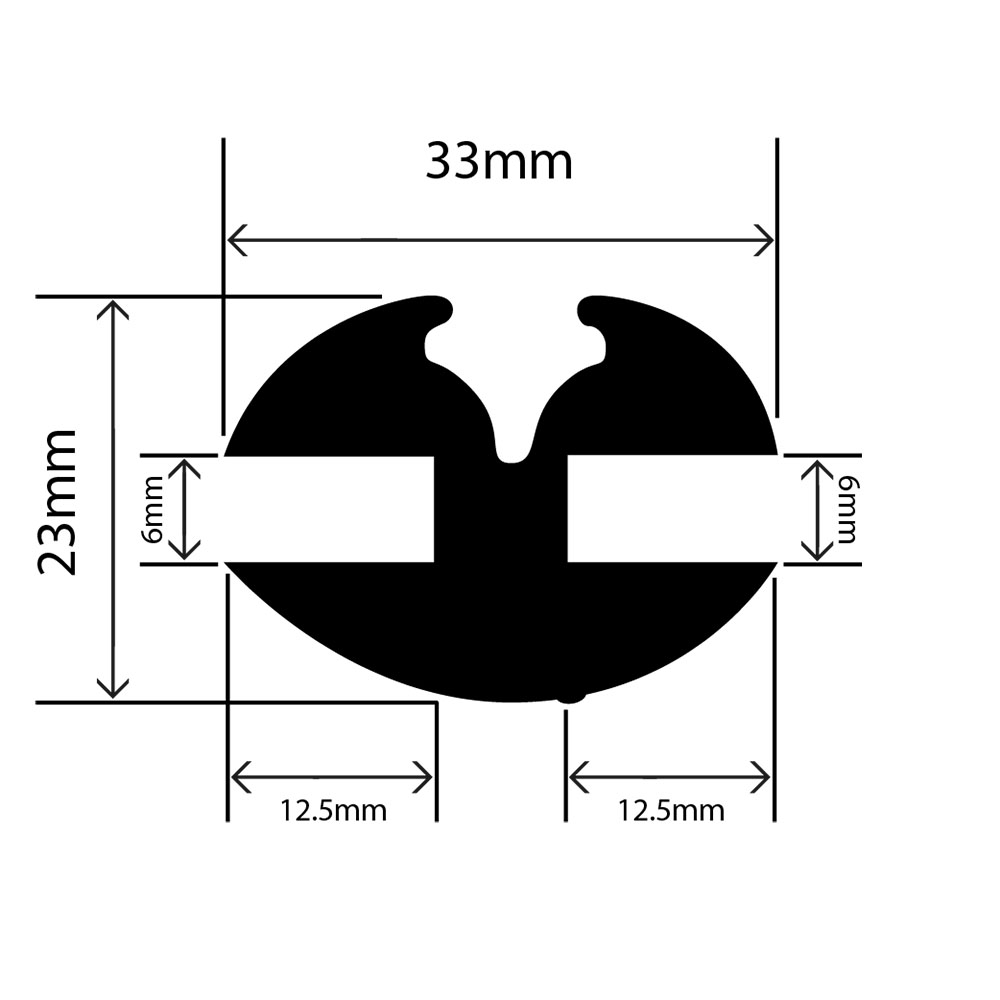

Size:33mm x 23mm
Hardness:65° – 75°
Minimum length:4m
Full coil length:30m
Colour:Black
Weight:0.49kg per metre
Estimated delivery:3 to 5 working days

Subject to availability – product lead times can vary

from £69.43


Key Features & Benefits

  • Air & watertight window seal
  • Excellent weathering & UV resistance
  • Suitable for up to 6mm glass and 6mm panel
  • Excellent resistance to ageing and abrasion

Product Information

Claytonrite Weatherstrip Glazing Seal – 33mm x 23mm

Our Claytonrite weatherstrip glazing seal – 33mm x 23mm is designed to act as a seal between a window and a panel, whether they be manufactured from glass, acrylic, Perspex, etc.

These glazing seals are manufactured from a highly durable EPDM rubber. EPDM provides excellent weathering and UV resistance and provides a reliable, watertight seal.

A filler strip, RC-LF1B, is also required with these seals. The filler strip is inserted into the seal and clamps the rubber in place, ensuring a tight, secure fit. A fitting tool, part number ACC009, is also available to assist with easy insertion of the filler strip.


If this isn’t the product you are looking for, take a look at the rest of our range of Claytonrite window rubber seals.

Technical Data

PropertiesValues
CompositionSolid ethylene propylene diene monomer (EPDM)
ApplicationsWindow seals
Size33mm x 23mm
To fit glassUp to 6mm
To fit panel6mm
Bend radius102mm
Tensile strength10 MPa
Elongation at break500%
Compression set (70°C for 22hrs)21%
Maximum temperature90°C
Minimum temperature-40°C

Downloads



DatasheetInstallation Guide
