Electrical Matting IEC 61111:2009 – Class 2

Product Information

Electrical Matting IEC 61111:2009 – Class 2

Our Class 2 electrical matting fully conforms to IEC 61111:2009 European standards, resulting in exceptional safety for users.

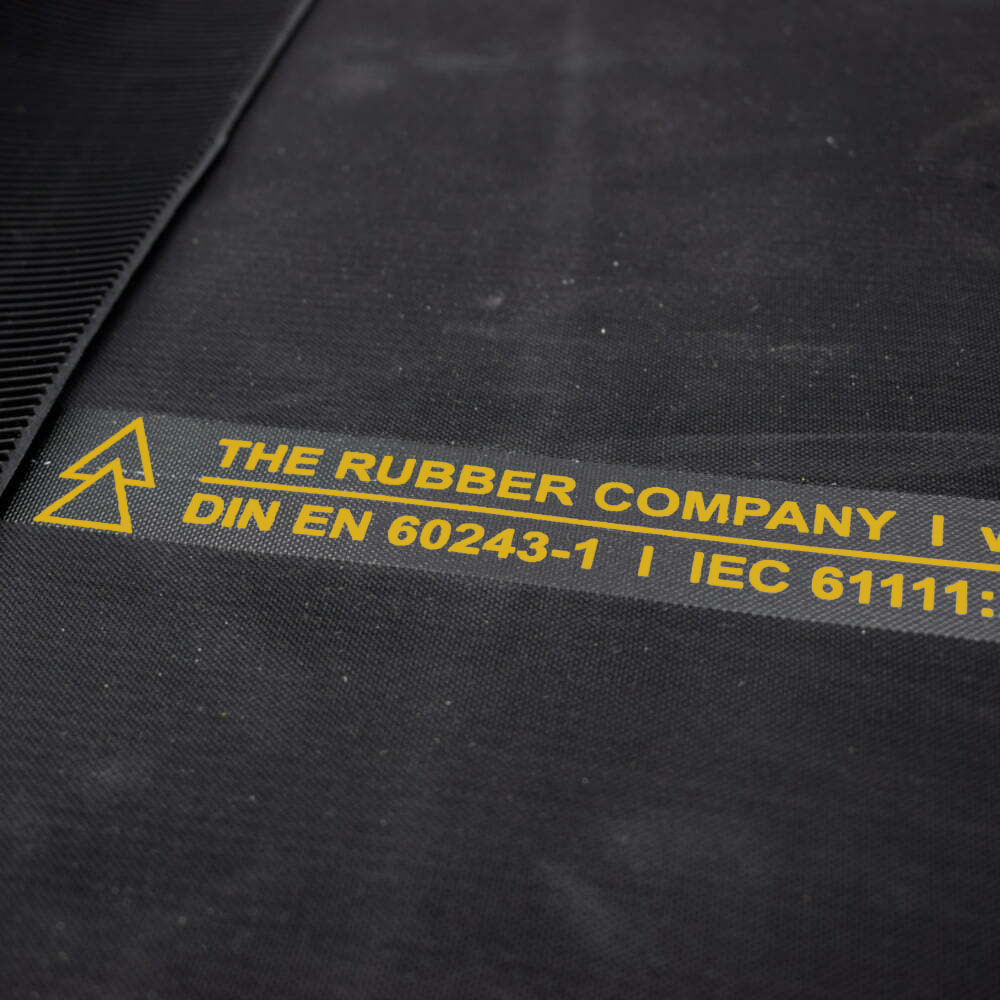

Aside from offering excellent electrical resistance, this matting is also incredibly user-friendly. The top surface features a fine rib pattern that provides superior levels of grip in almost all conditions. It is also incredibly easy to install and remove, and can even be rolled back up when not in use.

Unbeatable Safety

IEC 61111:2009 is the current UK and European specification for electrical insulation matting. The specification is crucial as it ensures that all new electrical matting is manufactured to the same criteria. It also helps to separate the matting into different classes, depending on the maximum voltage they can protect against. This enables you to quickly and easily select the appropriate electrical matting for your application. The classes are separated as follows:

Class 0 – Maximum Tested Voltage: 10,000 | Proof Voltage: 5000 | Safe Working Voltage: 1000
Class 1 – Maximum Tested Voltage: 20,000 | Proof Voltage: 10,000 | Safe Working Voltage: 7500
Class 2 – Maximum Tested Voltage: 30,000 | Proof Voltage: 20,000 | Safe Working Voltage: 17,000
Class 3 – Maximum Tested Voltage: 40,000 | Proof Voltage: 30,000 | Safe Working Voltage: 26,500
Class 4 – Maximum Tested Voltage: 50,000 | Proof Voltage: 40,000 | Safe Working Voltage: 36,000

The maximum tested voltage ensures that the electrical matting does not deteriorate when exposed to high voltages. Please note: you should not confuse this with the working voltage, which outlines the maximum voltage the mats can efficiently withstand for long periods of time.

To find out more about the International Electrotechnical Commission (IEC), click on the following link: www.iec.ch


If this is not the product you are looking for, take a look at the rest of our range of electrical safety matting.
