Multi-Fit Cable Protector – 120mm x 24mm

Item Code: RC-MFCP-120X24

Material:NR/SBR

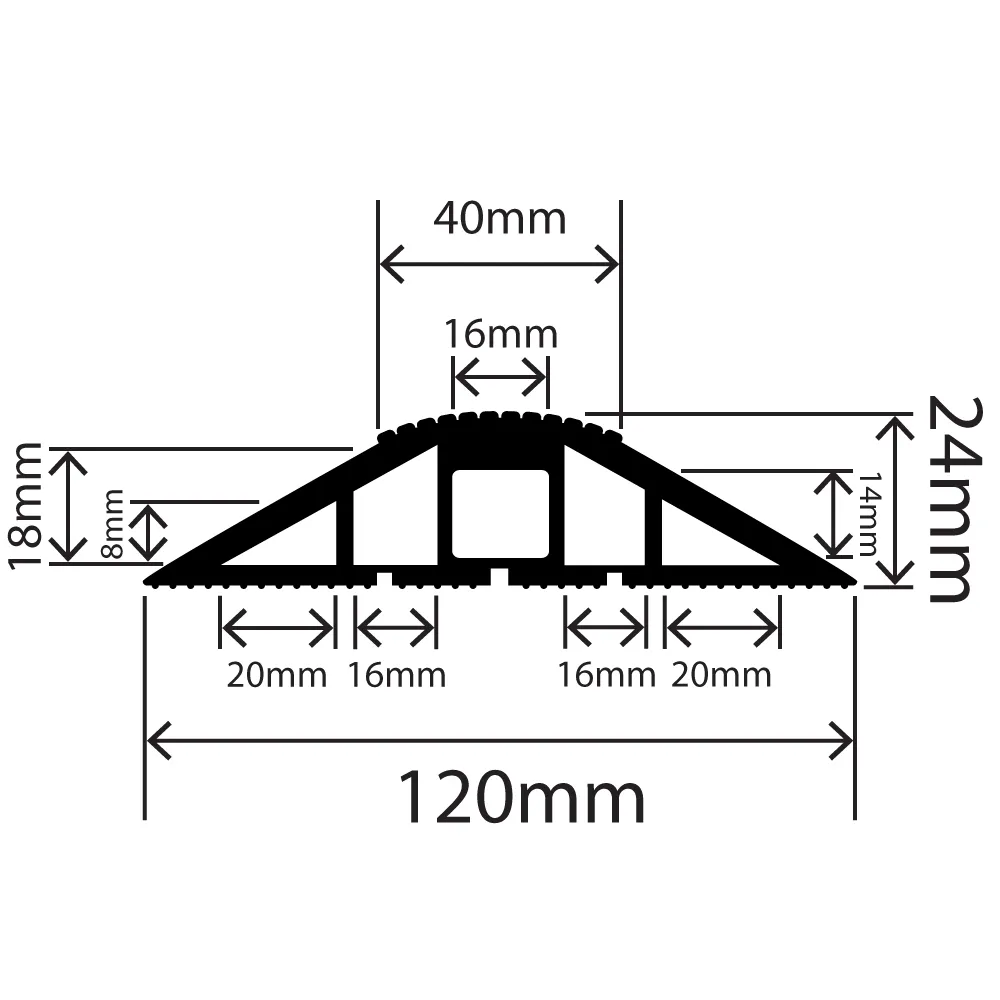

Width:120mm
Height:24mm
Hole size (x2):20mm x 8mm x 0.5mm
Hole size (x2):16mm x 18mm x 0.75mm
Hole size:16mm x 8mm
Length:1m, 1.5m, 3m, 4.5m, 15m
Hardness (Shore A):75°
Colour:Black, Grey
Estimated delivery:1 to 3 working days

from £54.18


Key Features & Benefits

  • Supplied in various lengths
  • Black or grey colours available
  • Five separate cable compartments
  • Anti-slip, ridged top section
  • Toughened construction
  • Excellent protection in small form factor
  • Fire tested to BS 476 Part 7 Class 3
  • Low smoke, non-toxic, and low fume emission levels
  • Reduces potential tripping hazards
  • Easy wheelchair passage
  • Tested for non-conductivity to BS903-C5, 500V
  • UV stable for extended outdoor use

Product Information

Multi-Fit Cable Protector – 120mm x 24mm

Multi-Fit cable protectors provide a quick and simple solution to protecting multiple cables in a single unit.

Manufactured from a highly durable rubber compound, these cable protectors can protect against heavy footfall in busy working environments, from offices and commercial properties to server rooms and warehouses.

This particular product features a ridged top section. This provides excellent anti-slip capabilities and enhances the overall health and safety offering.

A key feature of Multi-Fit cable protectors is their low-profile design. As well as reducing the potential of trips or falls, this also allows for easy wheelchair passage, providing essential accessibility.

Snap-Fit System

Multi-Fit protectors utilise a simple snap-fit system. This makes it incredibly easy to insert and remove your cables, as and when required. Other cable protectors may require you to thread your cables through the protector, which is not only time-consuming but can also cause damage to them.

Using the snap-fit system is as simple as snapping open the membrane at the base of the cable protector and pushing your cables through the gap. It really is as easy as that. The excellent shape memory of the rubber enables the cable protectors to hold your cables in place at all times.


If this isn’t the product you are looking for, take a look at the rest of our range of cable protectors.

Technical Data

PropertiesValues
ApplicationsOffices, shops, laboratories, exhibitions, server rooms, warehouses
ProductIndustrial cable protector
MaterialNatural Rubber / SBR blend
ColourBlack, Grey
Material Hardness75° +/- 5° (shore A)
HalogensNo halogens
ConductivityThe material is conductive, tested to BS903 part C5
Surface spread of flameTested to BS 479: part 7: 1987 class 3

Downloads



Datasheet
