RC3067 - TPE Square U Channel - 46mm x 43mmRC3067 - TPE Square U Channel - 46mm x 43mm

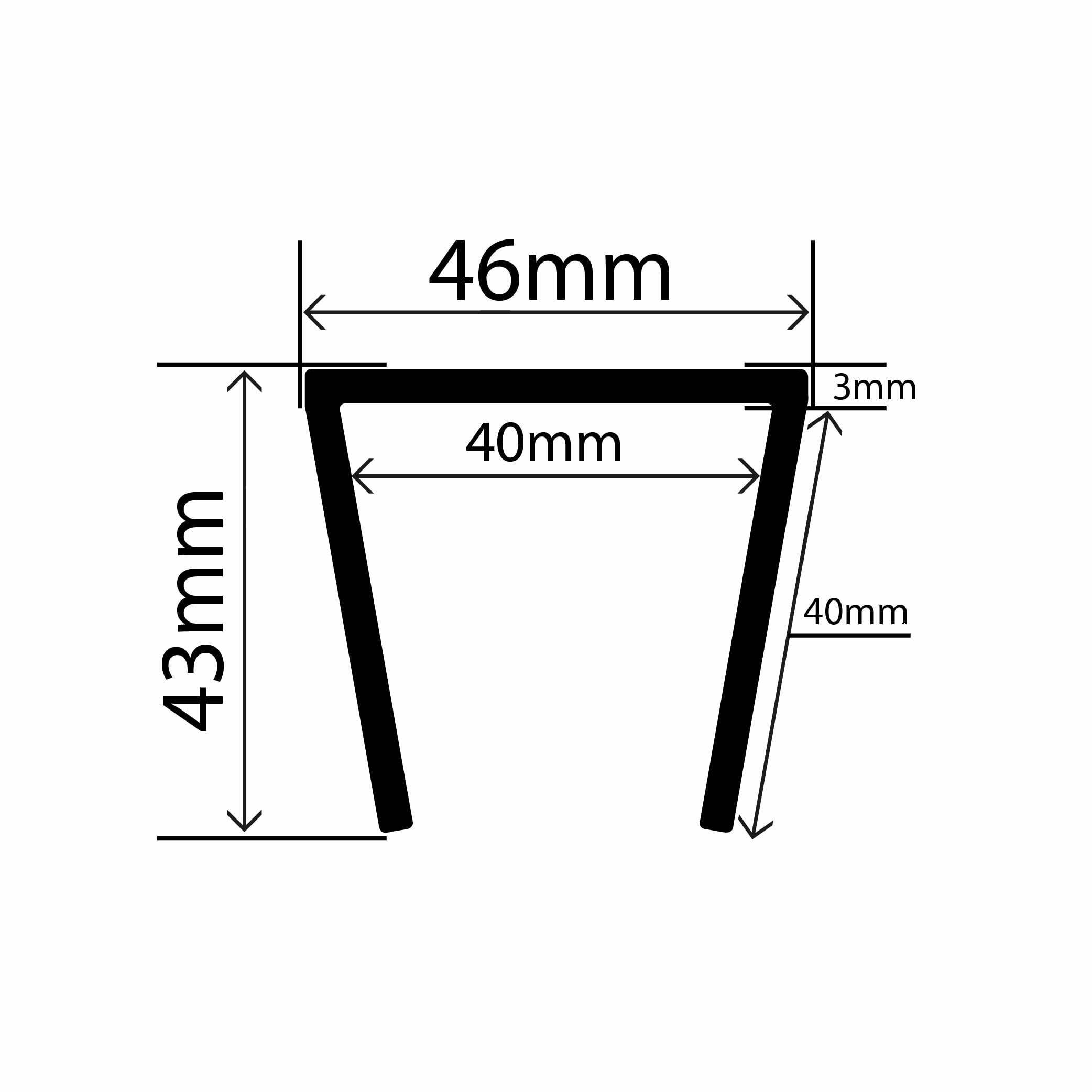

TPE Square U Channel – 46mm x 43mm x 25m

Item Code: RC3067

To fit panel: 40mm
Material:TPE
Size:46mm x 43mm
Hardness (Shore A):60°
Weight:225g (per metre)
Clamping range:40mm only
Strip length:25m
Colour:Black
Estimated delivery:1 to 2 weeks

Contact us to arrange faster delivery times.

£286.89 exc. VAT£344.27 inc. VAT


Key Features & Benefits

  • Tapered design provides excellent grip
  • Adhesive not required – can be removed and reused as required
  • Excellent flexing / bending fatigue resistance
  • Excellent weathering and UV resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-40°C to 90°C)
  • 100% recyclable
  • Easy to cut

Product Information

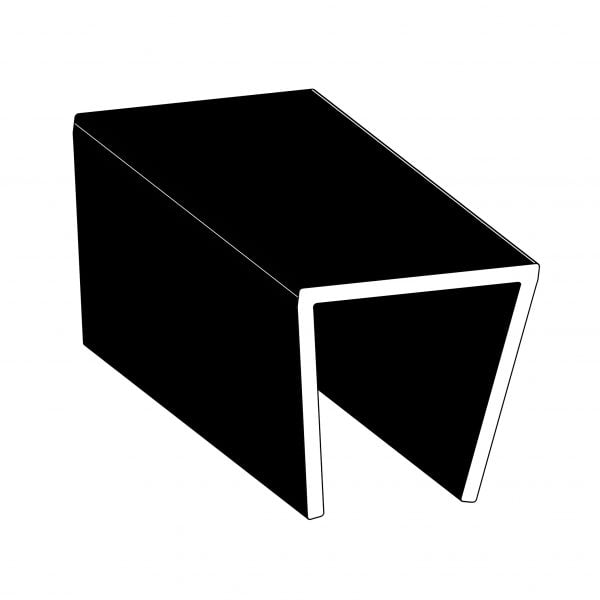

TPE Square U Channel – 46mm x 43mm

This TPE square U channel – 46mm x 43mm is the largest profile square impact protector we offer. It is suitable for use on sheets and edges with a thickness of 40mm.

Despite the large profile of this particular U channel, it is still able to maintain high gripping properties due to its tapered design. This is an important feature, especially for a large U channel as it is more likely to come into contact with impacts. The design also reduces the need for adhesive which allows you to install and remove the U channel as you need. This product maintains a constant thickness of 3mm which is more than enough to protect against a wide variety of impacts as well as heavy pressure.

We manufacture this product from TPE due to the unique protective properties it offers. TPE has the ability to stretch and compress for long periods of time before returning to its original shape. This ensures that our product can be in constant use without fear of warping or deterioration. It also ensures that the U channel maintains a tight grip at all times. Cheaper alternatives tend to use cheap rubber which is weaker and more prone to breaking. At RubberSmart, we always aim to produce high-quality products that offer maximum protection as well as durability.

Your Safety is Key

This TPE square U channel – 46mm x 43mm offers protection to both you as well as the object it is on. As it adheres to health and safety standards, this is a cost-effective tool to reduce the risk of danger. Whether you are transporting a product or simply want to avoid any hazards. This U channel is discreet and is easy to attach and remove as you please.

Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Contours of glazing
  • Running boards
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

PropertiesValues
CompositionEthylene propylene diene monomer (EPDM)
ApplicationsEdge protection, sheet metal, glass, doors, safety tool
Size46mm x 43mm
Thickness3mm
Tensile strength9 MPa
Maximum temperature90°C
Minimum temperature-40°C
Product tolerance class (ISO 3302-1)E2 – L2 (click here to see data)

PDFs



Datasheet
