Key Features & Benefits
- Air & watertight window seal
- Excellent weathering & UV resistance
- Suitable for up to 3mm glass and 0.8mm to 1.6mm panel
- Excellent resistance to ageing and abrasion
Item Code: RC-I768
Material: | Solid EPDM |

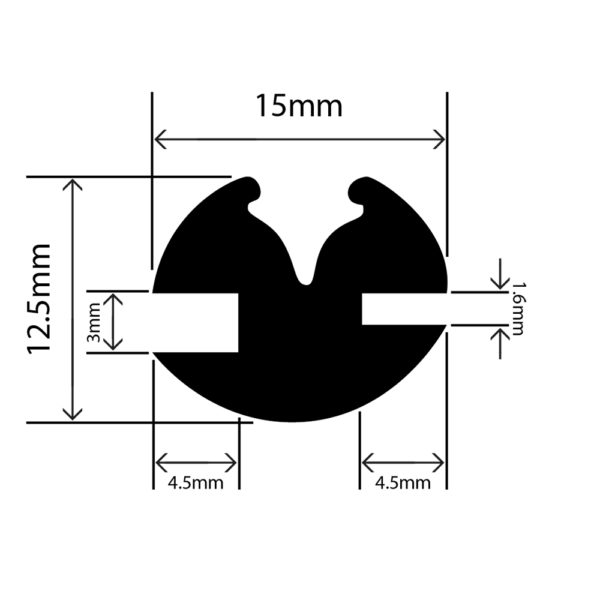

Size: | 15mm x 13.5mm |
Hardness: | 65° – 75° |
Glass and panel clearance: | 6mm |
Minimum length: | 18m |
Full coil length: | 30m |
Colour: | Black |
Weight: | 0.13kg per metre |
Estimated delivery: | 3 to 5 working days |
Subject to availability – product lead times can vary
from £59.40
Our Claytonrite weatherstrip glazing seal – 15mm x 12.5mm is designed to act as a seal between a window and a panel, whether they be manufactured from glass, acrylic, Perspex, etc.
These glazing seals are manufactured from a highly durable EPDM rubber. EPDM provides excellent weathering and UV resistance and provides a reliable, watertight seal.
A filler strip, RC-SF1B, is also required with these seals. The filler strip is inserted into the seal and clamps the rubber in place, ensuring a tight, secure fit. A fitting tool, part number ACC009, is also available to assist with easy insertion of the filler strip.
If this isn’t the product you are looking for, take a look at the rest of our range of Claytonrite window rubber seals.
Properties | Values |
---|---|
Composition | Solid ethylene propylene diene monomer (EPDM) |
Applications | Window seals |
Size | 15mm x 12.5mm |
To fit glass | Up to 3mm |
To fit panel | 0.8mm – 1.6mm |
Tensile strength | 10 MPa |
Elongation at break | 500% |
Compression set (70°C for 22hrs) | 21% |
Maximum temperature | 90°C |
Minimum temperature | -40°C |
