EPDM Sponge Boot Seal – 12mm x 17mm

Item Code: RC-S141

Material:Expanded EPDM
Size:12mm x 17mm
Hardness (Shore OO):40°
Estimated delivery:1 to 3 working days

Subject to availability – product lead times can vary

Product supplied with adhesive backing.

from £61.38


Key Features & Benefits

  • Boot seal for Jaguar XK type vehicles
  • Aftermarket reproduction profile
  • Air and watertight seal
  • Skinned construction for superior durability
  • Hollow design for superior compression
  • Able to seal against uneven surfaces
  • Supplied with adhesive backing
  • Non-marking material
  • Good UV and weathering resistance
  • Suitable for interior and exterior applications

Product Information

EPDM Sponge Boot Seal 12mm x 17mm

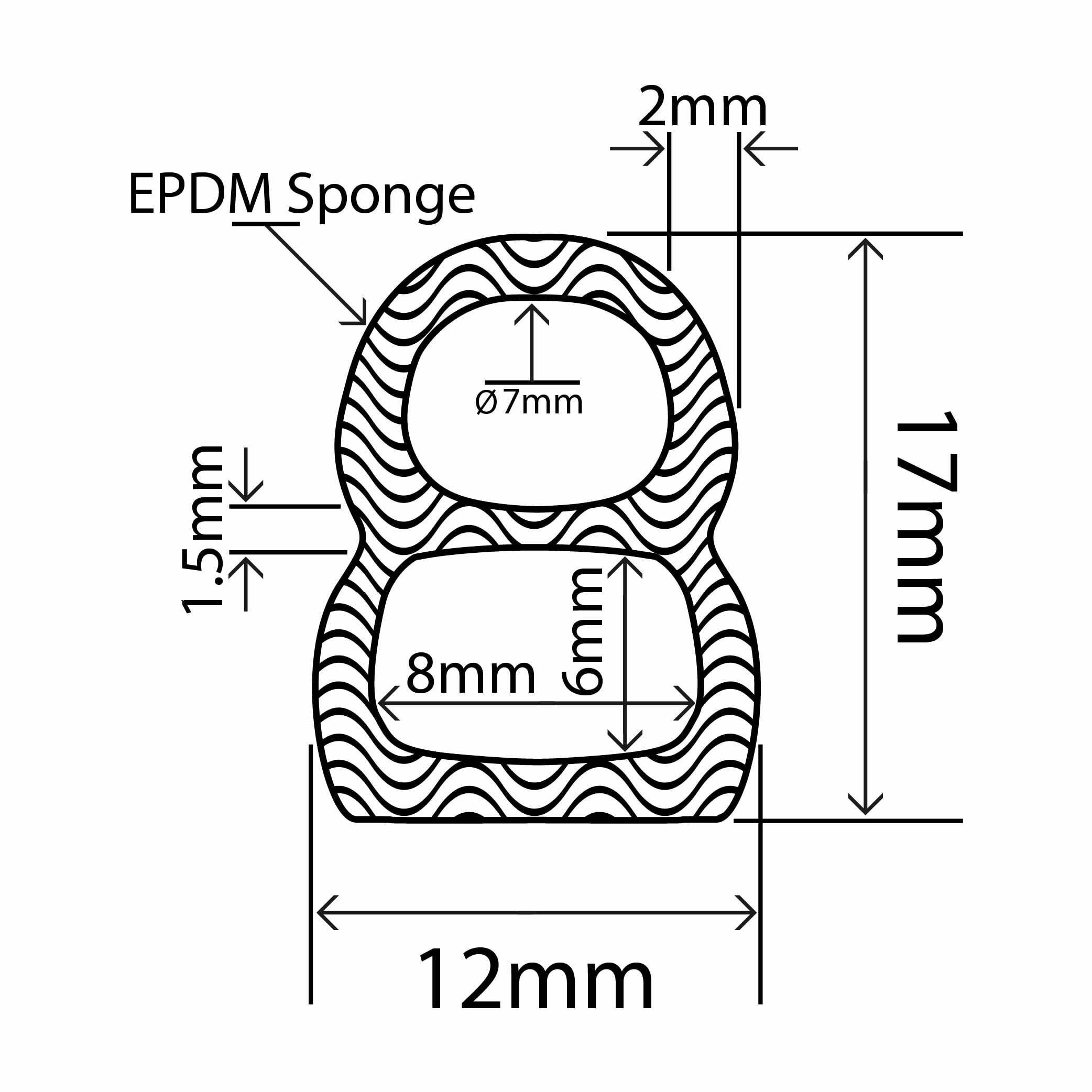

This EPDM sponge boot seal 12mm x 17mm is a highly durable and versatile sealing solution. It is suitable for use as a boot seal in Jaguar XK-type classic vehicles. We manufacture this boot seal to ensure it has the same shape and dimensions as the original part our seal replaces. This ensures that you can easily install our seal, as it requires no extra parts while also providing the same level of sealing as the original. This particular boot seal has a width of 12mm and a height of 17mm and also features two holes to create a number eight design. The inner holes serve two main uses. Firstly you can run cables or wire through them to protect against impact as well as weathering damage. However, if left empty the holes allow for superior compression rates which enable this product to provide additional sealing properties.

We manufacture this boot seal from a high-quality sponge EPDM material due to the unique properties the material offers. Sponge EPDM has excellent air as well as watertight properties, this makes the material perfect for use in seals. EPDM is also resistant to a wide variety of chemicals. This ensures that our seal won’t deteriorate during use and that it requires little to no maintenance. Sponge EPDM is highly flexible which enables our seal to fill any irregularities or uneven surfaces, which ensures that it provides the maximum sealing possible.

We have a wide selection of sponge extrusions in a variety of different shapes and sizes to fit any application. Click here to view our full sponge profile section.

Durable and Easy to Install

We design this product specifically to be able to withstand a variety of impacts while still maintaining its original shape. This ensures that you are able to get a lot of use out of the product without fear of warping or deterioration during use. We manufacture this product from a high-quality EPDM rubber due to the unique properties the material offers. EPDM offers outstanding resistance to heat, ozone, as well as weather while also offering good resistance to both polar substances and steam. EPDM also has excellent electrical insulating properties while being able to withstand a range of chemicals from ketones, ordinary diluted acids, to alkalies. All of these factors ensure that you can use this product in a wide variety of applications, requiring little to no maintenance.

EPDM is also lightweight which makes transportation and installation simple and fast. This product can be cut using standard household tools to meet any size you require.

A Variety of Applications

  • Automotive applications
  • Electronics
  • Construction trades
  • Shock absorbers
  • Gaskets
  • Glazing and closure seals
  • Jointing expansion
  • Weather strips

Shipping and Manufacture

Our EPDM sponge boot seal 12mm x 17mm is shipped direct to you from our warehouse in Romsey, Hampshire in the United Kingdom. This product is also quality tested by our specialist staff. This ensures that we can offer you the best quality product possible.

Technical Data

ApplicationSeals, surface protection, waterproofing, industrial, home use
ProductSponge Extrusion
MaterialExpanded EPDM
Hardness (Shore OO)40°
Size12mm x 17mm
Density range0.5 – 0.9 G/CM³
Water absorption5% (max)
Compression set (22 hours)50%
Oven ageing (7 days at 70°C)±30%



DatasheetAdhesive Sponge Extrusions
