EPDM Square U Channel – 9.2mm x 15mm x 50m

Item Code: RC-B706

To fit panel: 6mm
Material: EPDM

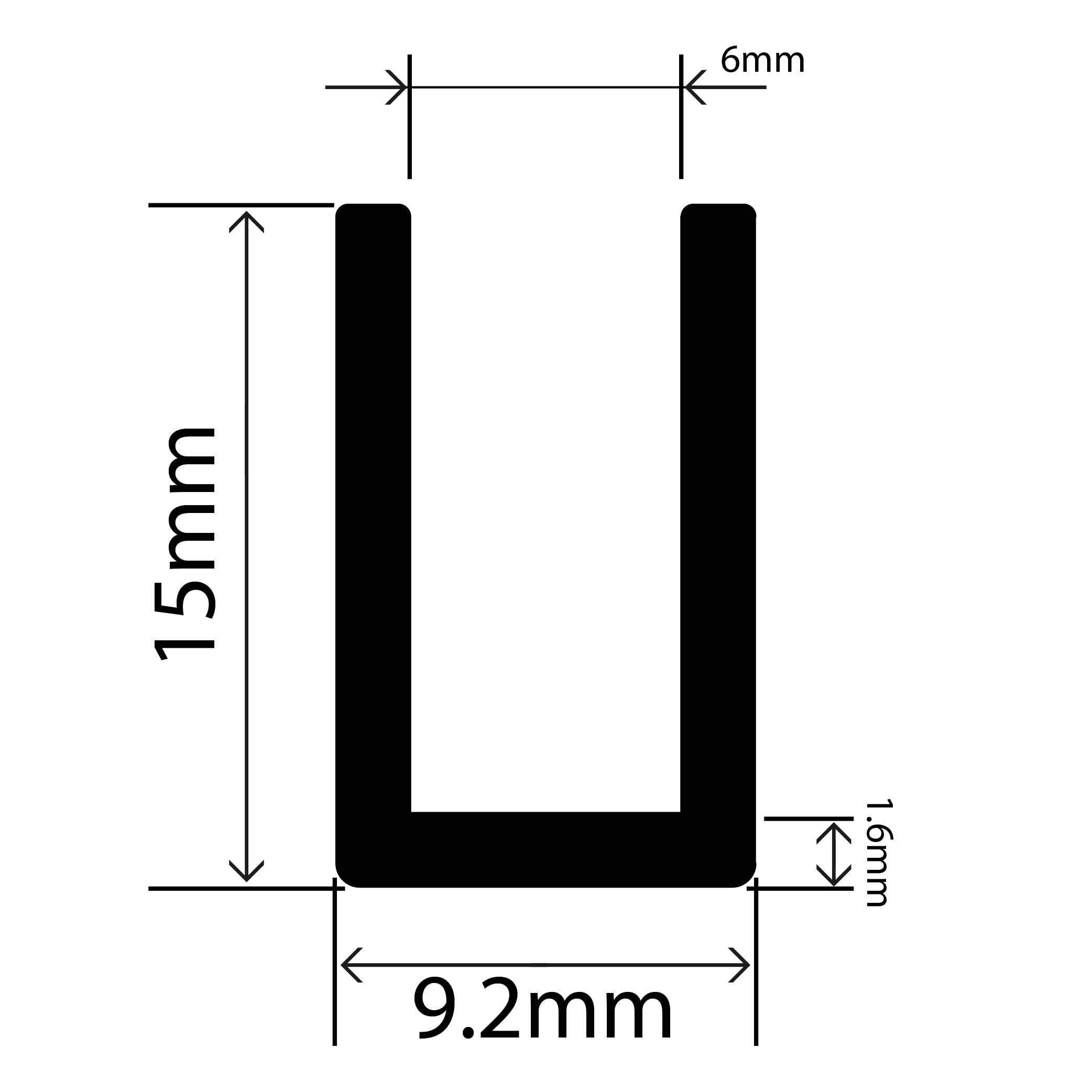

Size: 9.2mm x 15mm
Channel width: 6mm
Hardness (Shore A): 65°
Weight: 80g (per metre)
Strip length: 50m
Colour: Black

£140.31 exc. VAT£168.37 inc. VAT

Estimated Delivery:3 to 5 working days

Key Features & Benefits

  • Highly durable protector
  • 100% recyclable
  • Lightweight
  • Good resistance to weathering and chemicals
  • High quality materials

Product Information

EPDM Square U Channel – 9.2mm x 15mm

A great tool at protecting edges, this is our EPDM square U channel – 9.2mm x 15mm. If you are looking to add some protection to panels, doors, glass, etc then this is the perfect tool for you. The EPDM rubber provides shock absorption to any material that you put it on but also protects you from any sharp corners.

While edge protectors are predominantly used in more industrial environments, they are perfect for a variety of uses. Ideal at protecting anything from furniture and vending machines to running boards as well as, the contours of glazing. All of our square U channels are designed to be flexible even more, to ensure that they fit snugly to whatever you need them for.

Easy to Install

The strips can be easily cut using a range of tools to fit your specific needs. once cut to the correct size simply slide the U channel over the edge and it’s as easy as that. Our U channels can also be bonded in place using either polyurethane or silicone sealants. This enables it to make a tight seal around aluminium window channels for example.

The width of the channel can be increased by bonding a neoprene strip alongside it. Equally the panel thickness can be reduced by bonding a strip inside of it.

A Variety of Applications

  • Sheet metal
  • Edges on panels
  • Doors
  • Glass
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

Properties Values
Composition Ethylene propylene diene monomer (EPDM)
Applications Edge protection, sheet metal, glass, doors, safety tool
Size 9.2mm x 15mm
Thickness 1.6mm
Tensile strength 9 MPa
Maximum temperature 120°C
Minimum temperature -40°C
