RC492 - TPE Square U Channel - 16mm x 16.5mmRC492 - TPE Square U Channel - 16mm x 16.5mm

TPE Square U Channel – 16mm x 16.5mm x 25m

Item Code: RC492

To fit panel: 12mm
Material:TPE
Size:16mm x 16.5mm
Hardness (Shore A):60°
Clamping range:N/A
Strip length:25m
Colour:Black
Estimated delivery:4 to 5 weeks

£161.75 exc. VAT£194.10 inc. VAT


Key Features & Benefits

  • Tapered design provides excellent grip
  • Adhesive not required – can be removed and reused as required
  • Excellent flexing / bending fatigue resistance
  • Excellent weathering and UV resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-40°C to 90°C)
  • 100% recyclable
  • Easy to cut

Product Information

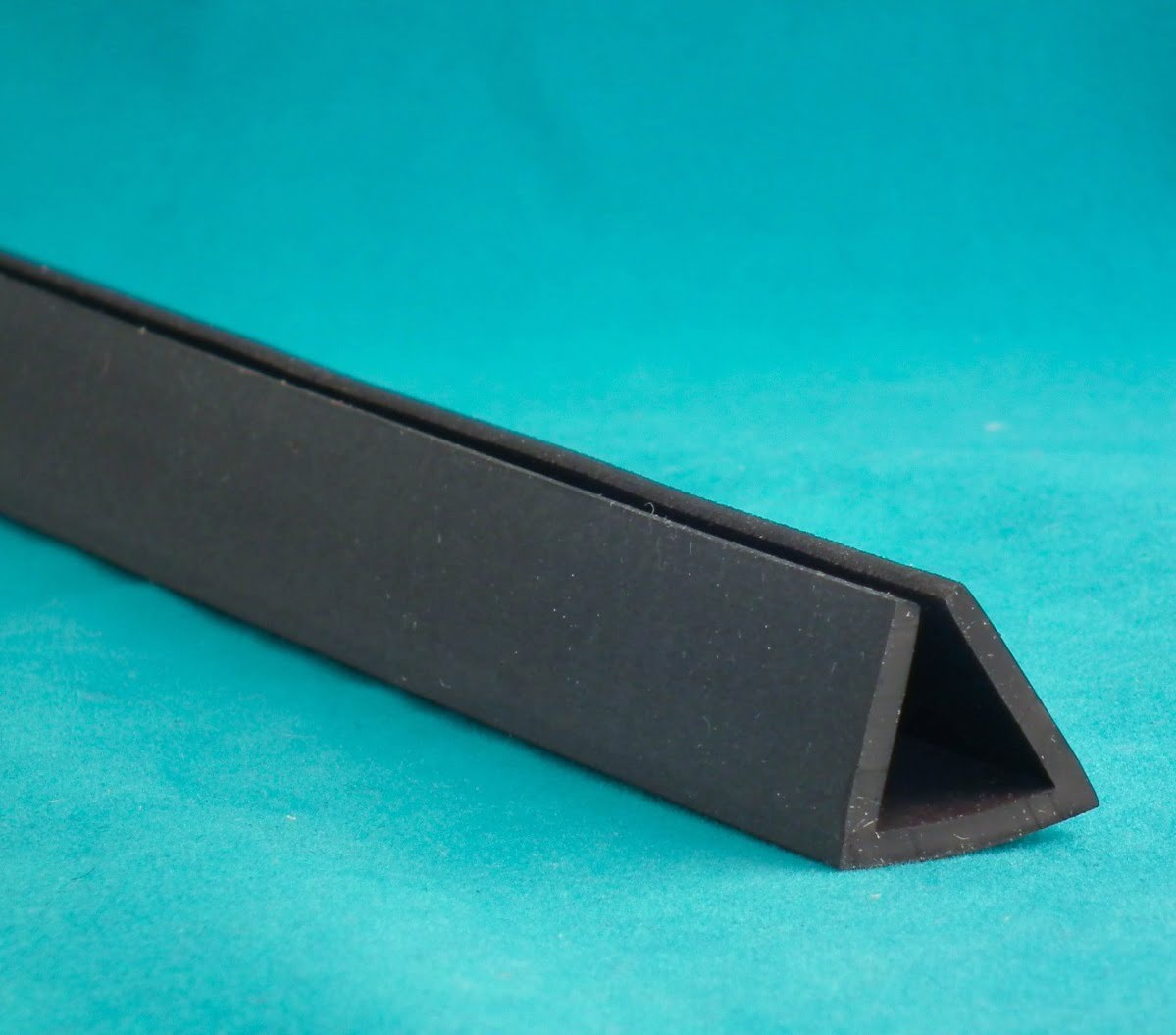

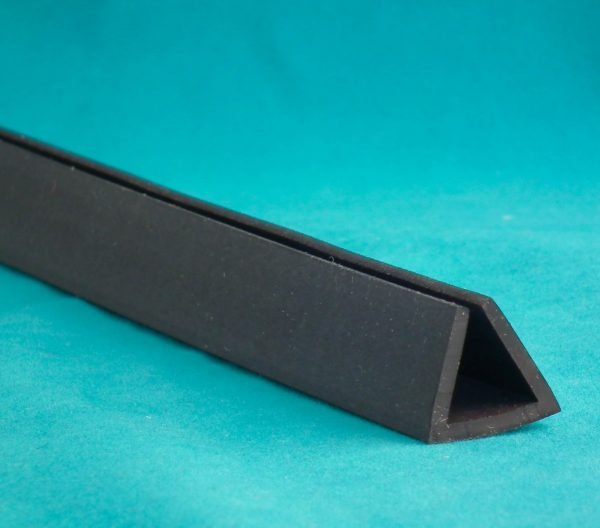

TPE Square U Channel – 16mm x 16.5mm

This TPE square U channel – 16mm x 16.5mm is a highly durable impact protector, suitable for use on objects with a thickness of 12mm.

This square U channel features a tapered design which gives this particular product some unique attributes. First of all this U channel is able to provide a secure grip to any object you use it on, which reduces the need for adhesive. Secondly, the shape allows the U channel to transfer impact and pressure away from the fragile part of the objects. This U channel has a constant thickness of 2mm which enables it to withstand a variety of impacts without compromising on space.

The U channel has a (shore A) hardness value of 60°, which essentially means this is a relatively firm product. The superior hardness enables this product to be able to absorb heavy pressure and impacts despite being only 2mm thick. The hardness also makes the U channel less likely to bend and warp during use which increases the life expectancy of the product. Finally, it enables you to get multiple uses out of a single U channel which ensures you get excellent value for your money.

Your Safety is Key

This TPE square U channel – 16mm x 16.5mm offers protection to both you as well as the object it is on. As it adheres to health and safety standards, this is a cost-effective tool to reduce the risk of danger. Whether you are transporting a product or simply want to avoid any hazards. This U channel is discreet and is easy to attach and remove as you please.

Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Contours of glazing
  • Running boards
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

PropertiesValues
CompositionThermoplastic elastomer (TPE)
ApplicationsEdge protection, sheet metal, glass, furniture, safety tool

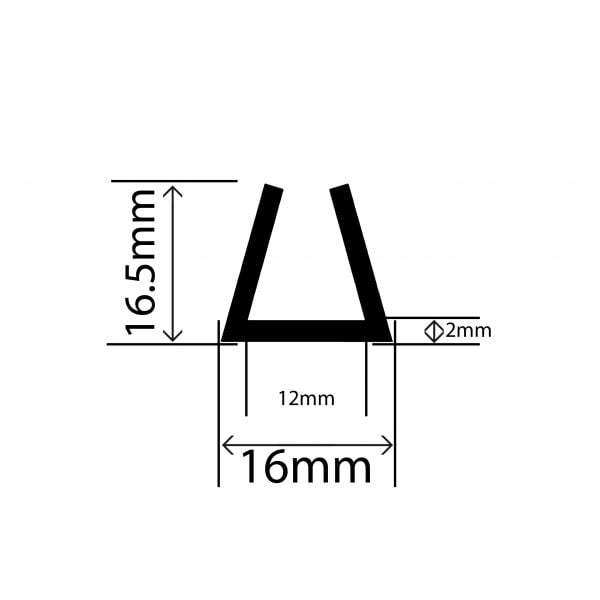

Size16mm x 16.5mm
Thickness2mm
Maximum temperature90°C
Minimum temperature-40°C
Product tolerance class (ISO 3302-1)E2 – L2 (click here to see data)

PDFs



Datasheet
