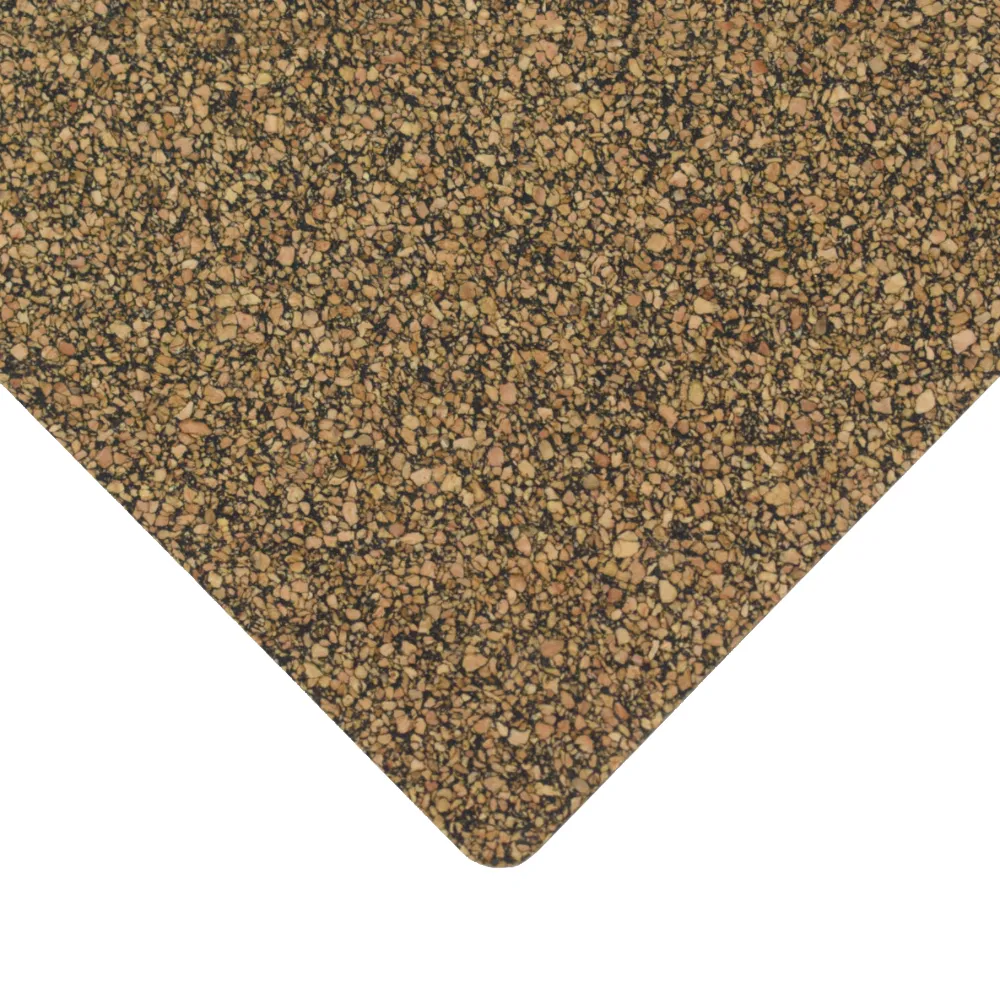

RC0306-04 - High-Compressible Anti-Vibration Cork SheetingRC0306-04 - High-Compressible Anti-Vibration Cork Sheeting

Anti-Vibration Sheet (High-Compressible) – 1m x 1m

Item Code: RC0306-04

Material: Cork, synthetic rubber
Hardness (Shore A): 55° – 70°
Size: 1m x 1m
Cork granule size: 0.5mm
Colour: Black with cork points

from £45.00 exc. VAT
You save (%)

Estimated Delivery:3 to 5 working days

Key Features & Benefits

  • Suited for vibration control
  • Resistant to oil and fuels
  • High compression
  • Good flexibility
  • High resilience

Product Information

Anti-Vibration Sheet (High-Compressible)

This is a high-compressible material suitable for low and medium bolt pressure, ideal for use in automotive and industrial gaskets and for vibration control in plant rooms etc.

Due to the high compressibility, this material is soft and compliant with good flexibility and resilience. This allows is to compress easily under load (typically 30-50% compression) and seals well on uneven or distorted flanges.

Cork offers excellent resistance to oil and fuel so this sheeting is suitable for a wide range of applications.

This incredibly lightweight material is simple and hassle-free to install. It can be easily trimmed to fit any shape or size with a variety of standard cutting tools, however, we suggest using a more heavy-duty tool in order to reduce mess.

Range of Thicknesses Available

A range of thicknesses, from 2mm to 25mm, are available. All of the sheets feature the same cork granule size and density, however, the thicker the sheet, the greater the compression.


If this is not the product you are looking for, take a look at the rest of our range of cork sheeting.

Technical Data

Properties Values
Application Anti-vibration, shock absorption, surface protection
Product Anti-vibration sheet
Material Cork, Synthetic Rubber
Cork Granule Size 0.5mm
Hardness (Shore A) 55°-70°
Colour Black
Roll size 1m x 1m
Density 0.56-0.75
Compression (at 400psi) 30-50 %
Recovery after >80 %
Transversal direction >8kg/cm
Longitudinal direction >12kg/cm

PDFs



Datasheet
