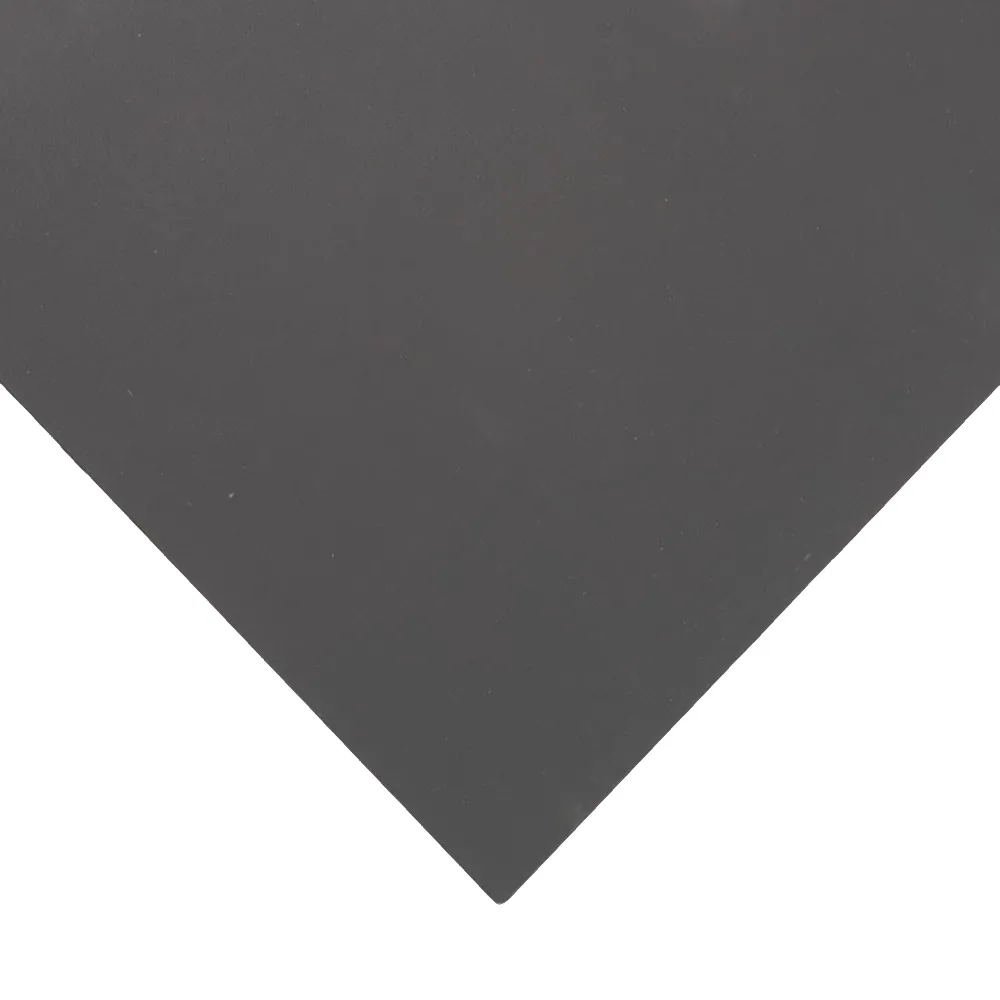

RC0323-FR - Flame-Retardant Silicone Sheeting

Flame-Retardant Silicone Sheeting

Item Code: RC0323-FR

Material:	Silicone (MF775)
Hardness (Shore A):	73°
Width:	1m
Thickness:	1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm
Colour:	Dark Grey

from £141.08 exc. VAT per metre
You save (%)

Estimated Delivery:

3 to 5 working days

Thickness

1.5mm

Clear

Price per linear metre

Key Features & Benefits

Excellent flame-retardant properties
Conforms to BS 6853 Category 1A, NF F 16-101 (L0, L2), and EN 45545-2 HL2 (R1, R7, R22 and R23 materials) for rolling stock
Meets the flammability requirement of FAR 25/ JAR 25/ CS 25 Appending F, Part 1, (a)(1)(iv) and (a)(1)(v) horizontal flammability tests
Tested to UL 94 V-0 (at 3mm) and UL 94 V-1 (at 2mm) specifications
Supplied in 1m wide sheets
Excellent performance, even at extremely low and high temperatures
Wide temperature range of -60°C up to +230°C
Excellent UV resistance
Excellent ozone resistance
Inherent fungus resistance
Ideal for a range of applications
Offers great sealing properties

Product Information

Flame-Retardant Silicone Sheeting

This flame-retardant silicone sheeting is manufactured from the MF775 compound, which was developed, specifically, for public transportation use.

To permit use on rolling stock and passenger-carrying trains, this sheeting complies with the following:

BS 6853 Category 1A
NF F 16-101 (L0, L2)
EN 45545-2 HL2 (R1, R7, R22 and R23 materials)

This sheeting also meets the flammability requirements of FAR Part 25, JAR-25, and CS-25 Appending F, Part 1, (a)(1)(iv) and (a)(1)(v) horizontal flammability tests, and meets the requirements of automotive standard Part 571FMVSS302. It has also been independently tested to, and meets the requirements of, UL 94 V-0 (at 3mm) and UL 94 V-1 (at 2mm), although it is not UL-listed.

As standard for silicone, this sheeting features excellent temperature stability in the range of -60°C to +230°C, and offers excellent resistance to ultraviolet light, ozone, seawater, and other forms of weathering.

A Range of Applications

Rail and automotive
Construction
Aerospace
Electronics

If this is not the product you are looking for, take a look at the rest of our range of silicone sheeting.

Technical Data

Property	Value
Material	Silicone (MF775 compound)
Colour	Dark Grey
Applications	Rail, automotive transportation, electronics, construction, aerospace
Hardness (Shore A)	73°
Tensile Strength	10.2MPa
Elongation at Break	320%
Compression Set (24 hours at 150°C)	20%
Compression Set (22 hours at 300°C)	20%
Brittle Point	-80°C
Limiting Oxygen Index	43.1%
Thermal Conductivity	0.24 W.m^-1.K^.1
Radiation Resistance	>10⁵ Grays (10⁷ Rads) typical
Dielectric Strength	23kV.mm^-1
Dielectric Constant	3.0
Dissipation Factor	3×10^-3
Volume Resistivity	8.1×10¹⁵Ω.cm
Operating Temperature Range	-40°C to +200°C
