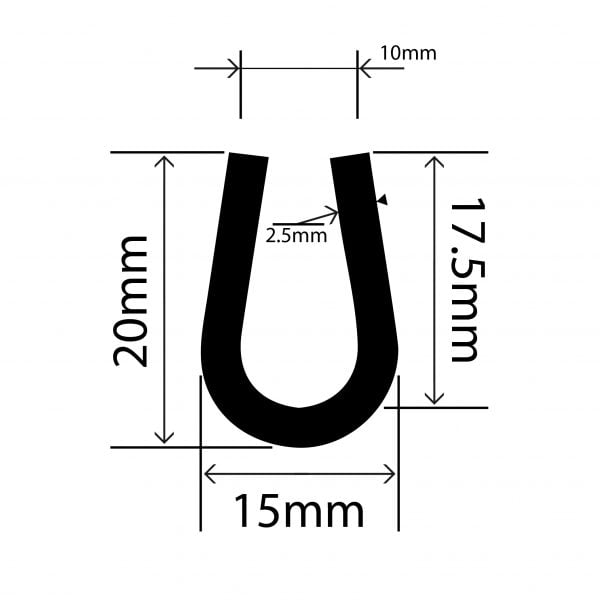

Silicone U Channel – 15mm x 20mm

Item Code: RC01102-SI-10

To fit panel: 10mm
Material: Silicone
Size: 15mm x 20mm
Channel width: 10mm
Hardness (Shore A): 60°
Strip lengths: 10m, 30m
Colour: Black

from £171.46 exc. VAT
You save (%)

Estimated Delivery:3 to 5 working days

Key Features & Benefits

  • Approved for food contact applications
  • Platinum cured to provide non-yellowing, high-gloss finish
  • Excellent heat and cold resistance
  • Excellent weathering resistance
  • Fair oil resistance
  • Wide operating temperature range (-40°C to 200°C)
  • 100% recyclable
  • Easy to cut

Approvals

Product Information

Silicone U Channel – 15mm x 20mm

Our silicone U channel – 15mm x 20mm is a great tool for protecting edges from damage, or for providing protection from the edges themselves.

This U channel is manufactured from platinum cured silicone. This ensures that it has a smooth, shiny surface, and is non-yellowing.

While edge protectors are predominantly used in more industrial environments, they are perfect for a variety of uses, such as protecting anything from furniture and vending machines, to running boards and the contours of glazing.

Easy to Install

The strips can be easily cut using any cutting implement. Once cut to the correct size, simply slide the U channel over the edge and it’s as easy as that. Our U channels can also be bonded in place using either polyurethane or silicone sealants. This enables it to make a tight seal around aluminium window channels, for example.

The width of the channel can be increased by bonding a neoprene strip alongside it. Equally, the panel thickness can be reduced by bonding a strip inside of it.

A Variety of Applications

    • Sheet metal
    • Edges on panels
    • Doors
    • Glass
    • Vending machines
    • Stairs

If this isn’t the size you’re looking for, take a look at the rest of our silicone U channels.

Technical Data

Properties Values
Composition Silicone
Applications Edge protection, sheet metal, glass, doors, safety tool
Size 15mm x 20mm
Thickness 2.5mm
Maximum temperature 200°C
Minimum temperature -40°C
