RC1524 - TPE Square U Channel - 16mm x 18mmRC1524 - TPE Square U Channel - 16mm x 18mm

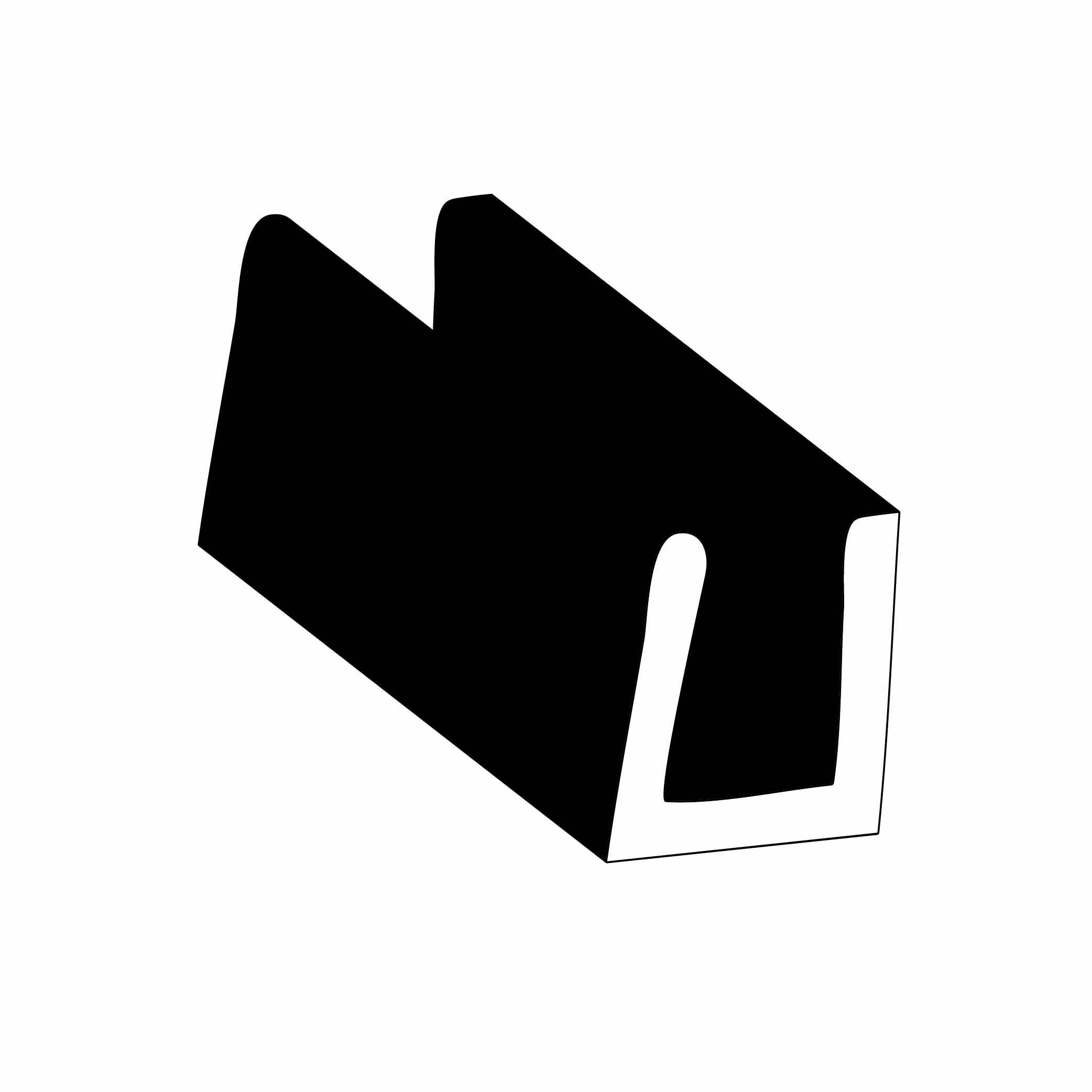

TPE Square U Channel – 16mm x 18mm x 25m

Item Code: RC1524

To fit panel: 10mm
Material: TPE

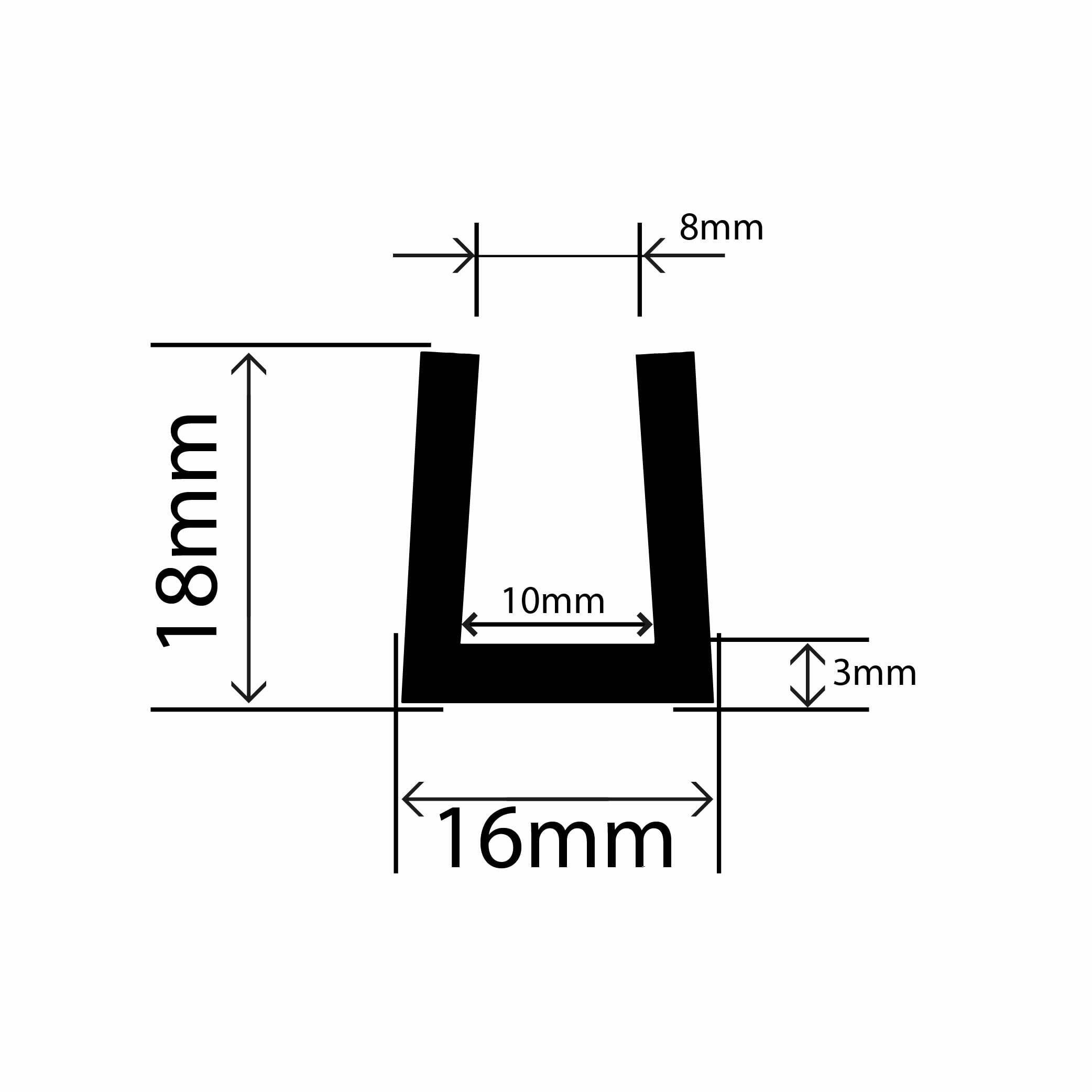

Size: 16mm x 18mm
Hardness (Shore A): 60°
Clamping range: 10mm only
Strip length: 25m
Colour: Black

£178.86 exc. VAT£214.63 inc. VAT

Estimated Delivery:3 to 5 weeks

Key Features & Benefits

  • Tapered design provides excellent grip
  • Adhesive not required – can be removed and reused as required
  • Excellent flexing / bending fatigue resistance
  • Excellent weathering and UV resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-40°C to 90°C)
  • 100% recyclable
  • Easy to cut

Product Information

TPE Square U Channel – 16mm x 18mm

This TPE square U channel – 16mm x 18mm is a versatile impact protector, suitable for use on sheets and edges with a thickness of 10mm.

This square U channel features a tapered design which benefits the product in two ways. First of all, it allows the product to provide superior protection to the areas that need it while saving space on the areas which are less prone to impact. Secondly, it improves the gripping capabilities of the product and ensures a secure fit on any object you use it on. This also reduces the need for adhesive and allows you to install and remove the U channel as you need.

The U channel offers great resistance to weathering and chemical damage. This ensures you can easily use the product in both indoor and outdoor applications with little to no maintenance. It also reduces any deterioration and maximizes potential applications. This product has excellent resistance to ageing, which serves to increase the life expectancy of the product. It also reduces the risk of the product breaking during use.

Your Safety is Key

This TPE square U channel – 16mm x 18mm offers protection to both you as well as the object it is on. As it adheres to health and safety standards, this is a cost-effective tool to reduce the risk of danger. Whether you are transporting a product or simply want to avoid any hazards, this U channel is discreet and is easy to attach and remove as you please.

Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Contours of glazing
  • Running boards
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

Properties Values
Composition Thermoplastic elastomer (TPE)
Applications Edge protection, sheet metal, glass, furniture, safety tool
Size 16mm x 18mm
Thickness 3mm
Maximum temperature 90°C
Minimum temperature -40°C
Product tolerance class (ISO 3302-1) E2 – L2 (click here to see data)

PDFs



Datasheet
