TPE Square U Channel – 9mm x 17mm x 50m

Item Code: RC150

To fit panel: 3mm
Material: TPE
Size: 9mm x 17mm
Hardness (Shore A): 60°
Clamping range: N/A
Strip length: 50m
Colour: Black

£178.45 exc. VAT£214.14 inc. VAT

Estimated Delivery:6 to 7 weeks

Key Features & Benefits

  • Tapered design provides excellent grip
  • Adhesive not required – can be removed and reused as required
  • Excellent flexing / bending fatigue resistance
  • Excellent weathering and UV resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-40°C to 90°C)
  • 100% recyclable
  • Easy to cut

Product Information

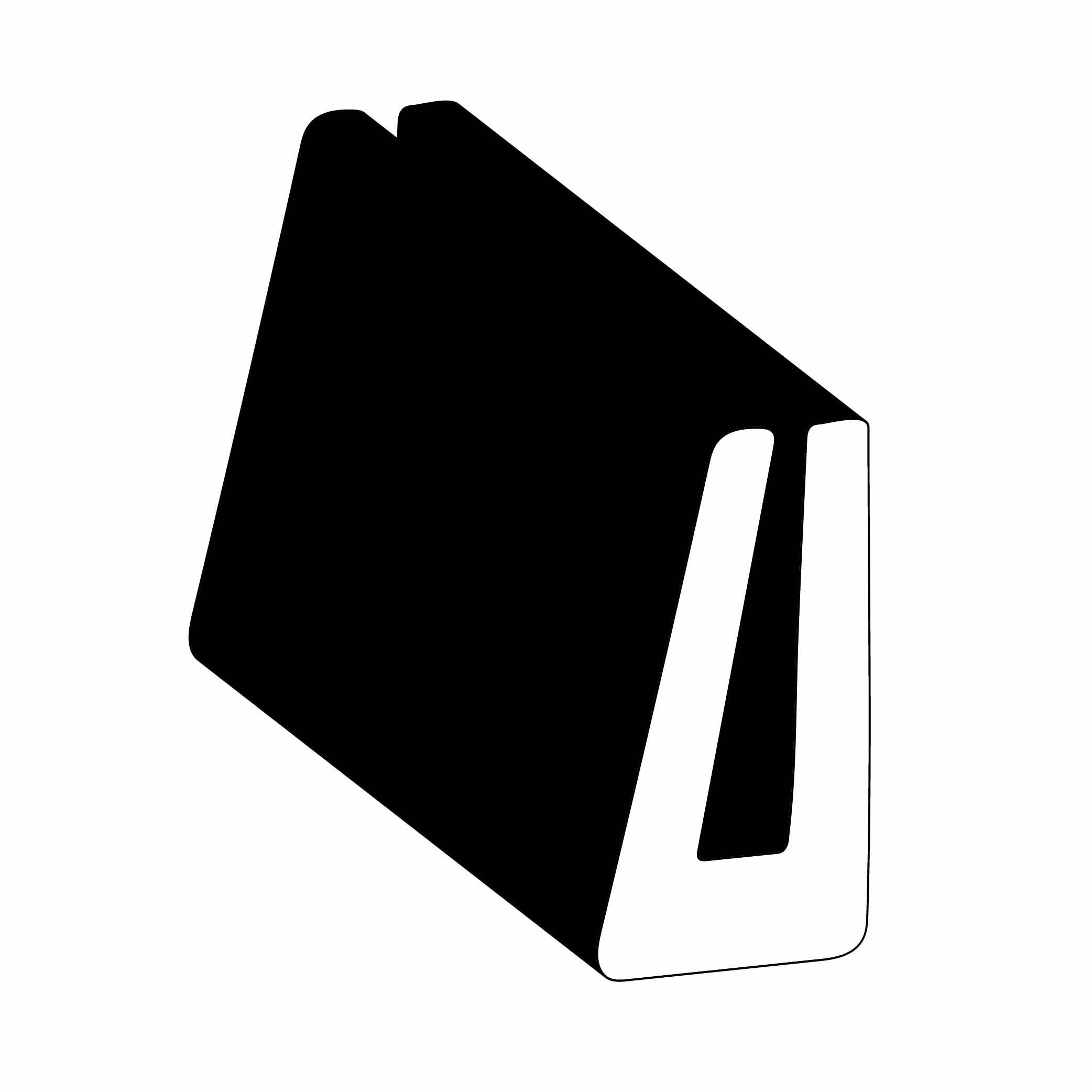

TPE Square U Channel – 9mm x 17mm

This TPE square U channel – 9mm x 17mm is a highly versatile and resistant U channel. It is suitable for use on sheets and edges with a thickness of 3mm. This particular square U channel features a tapered design which enables it to provide superior gripping without the need for adhesive. The product has a thickness of 2mm, which enables it to withstand a variety of impacts due to the firm rubber we use to manufacture it. This U channel has a base thickness of 3.5mm in order to provide superior protection to the parts of a sheet or edge which require it most.

We manufacture this U channel from a high-quality TPE material, due to the specific qualities this material offers. TPE is unique as it has the ability to stretch and compress for long periods of time before returning to its original shape. This is crucial, as it allows the product to be in constant use without deterioration. This improves the life expectancy of the product and also ensures that it doesn’t let you down when you need it most.

Your Safety is Key

This TPE U channel – 9mm x 17mm offers protection to both you as well as the object it is on. As it adheres to health and safety standards, this is a cost-effective tool for reducing the risk of danger, whether you are transporting a product or simply want to avoid any hazards. This U channel is discreet and is easy to attach and remove as you please.

Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Contours of glazing
  • Running boards
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

Properties Values
Composition Thermoplastic elastomer (TPE)
Applications Edge protection, sheet metal, glass, furniture, safety tool
Size 9mm x 17mm

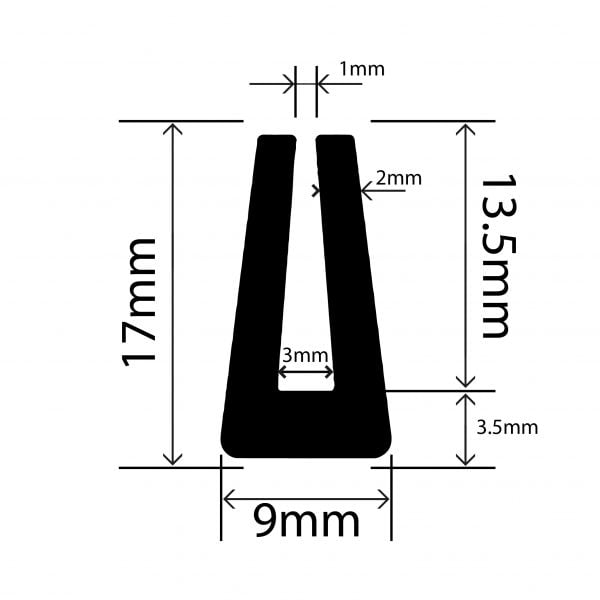

Thickness 3.5mm (thickest point), 2mm (thinnest point
Maximum temperature 70°C
Minimum temperature -25°C
Product tolerance class (ISO 3302-1) E2 – L2 (click here to see data)
