TPE U Channel – 10mm x 21mm x 50m

Item Code: RC613

To fit panel: 2.5mm
Material: TPE
Size: 10mm x 21mm
Hardness (Shore A): 60°
Clamping range: 2.5mm only
Strip length: 50m
Colour: Black

£189.29 exc. VAT£227.15 inc. VAT

Estimated Delivery:1 to 2 weeks

Key Features & Benefits

  • Large gripping arms provide wider anchor point reducing the need for adhesive
  • Thick, round base increases impact transfer away from object
  • Excellent flexing / bending fatigue resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-50°C to 90°C)
  • 100% recyclable
  • Easy to cut

Product Information

TPE U Channel – 10mm x 21mm

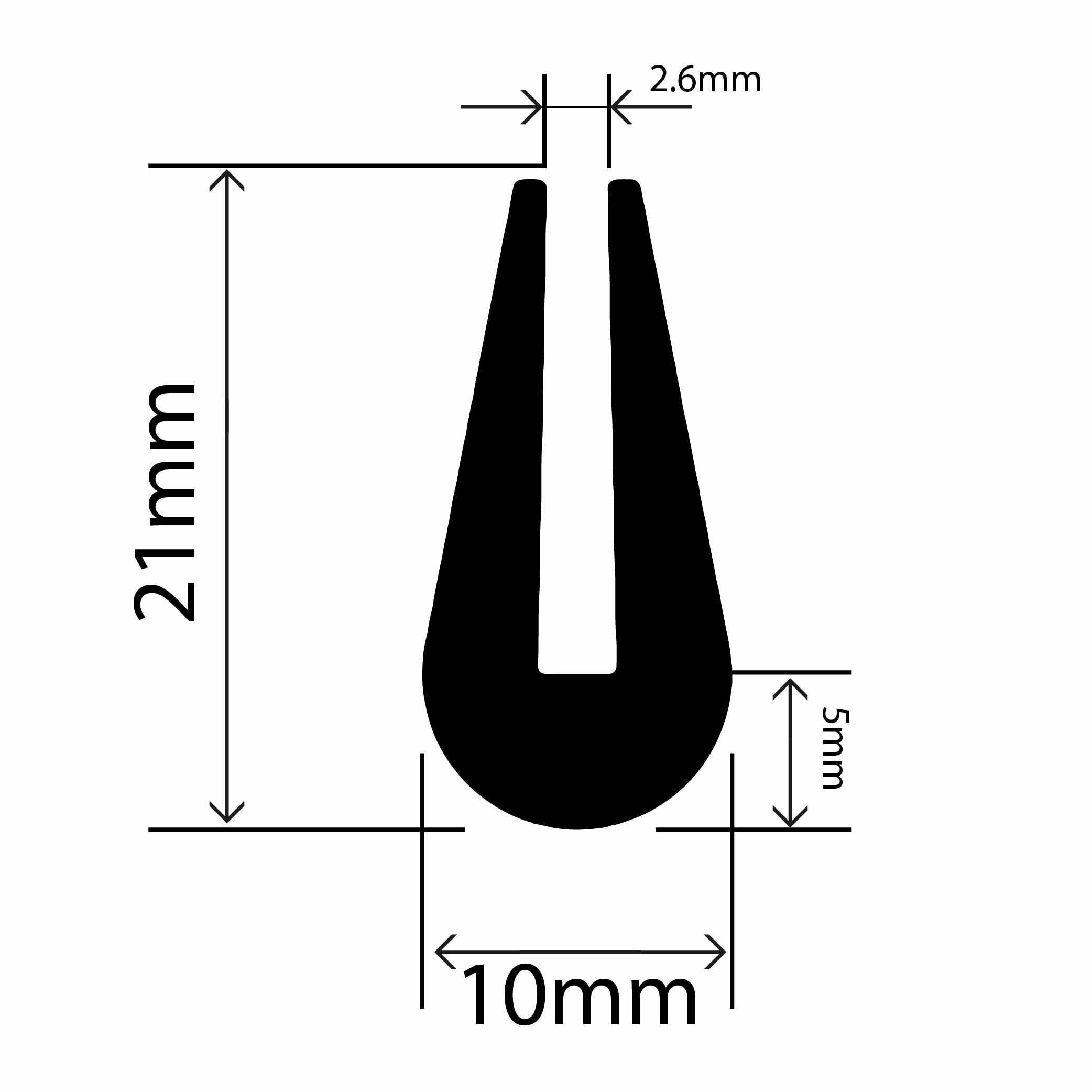

This TPE U channel – 10mm x 21mm is the ideal tool for protecting sheets and edges from damage due to the superior impact absorption properties it offers. This particular U channel also benefits from 16mm gripping arms on both sides of the sheet or edge to ensure more surface area is in contact with the object. That gives this product a larger anchor point to ensure a secure connection is made, reducing the need for adhesive. The U channel also has a maximum width of 10mm at its base where higher levels of protection are essential. This product has a channel width of 2.6mm which makes it excellent for use on 2.5mm panels or edges.

This product also offers great resistance to weathering and chemicals, which allows you to use it either indoors or outdoors with minimal maintenance. The U channel also offers excellent resistance to aging, allowing you to use it time and time again before you notice any sights of deterioration. At RubberSmart, we always aim to produce high-quality products that stand the test of time and save you money but also ensure the product doesn’t let you down when you need it.

Your Safety is Key

This rubber TPE U channel – 10mm x 21mm offers protection to both you as well as the object it is on. As it adheres to health and safety standards, this is a cost-effective tool for reducing the risk of danger, whether you are transporting a product or simply want to avoid any hazards. This U channel is discreet and is easy to attach and remove as you please. Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Contours of glazing
  • Running boards
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

Properties Values
Composition Thermoplastic elastomer (TPE)
Applications Edge protection, sheet metal, glass, furniture, safety tool
Size 10mm x 21mm
Thickness 5mm (at thickest point)
Maximum temperature 90°C
Minimum temperature -40°C
Product tolerance class (ISO 3302-1) E2 – L2 (click here to see data)

PDFs



Datasheet
