TPE U Channel – 20mm x 31mm x 25m

Item Code: RC3250

To fit panel: 7mm – 8mm
Material: TPE

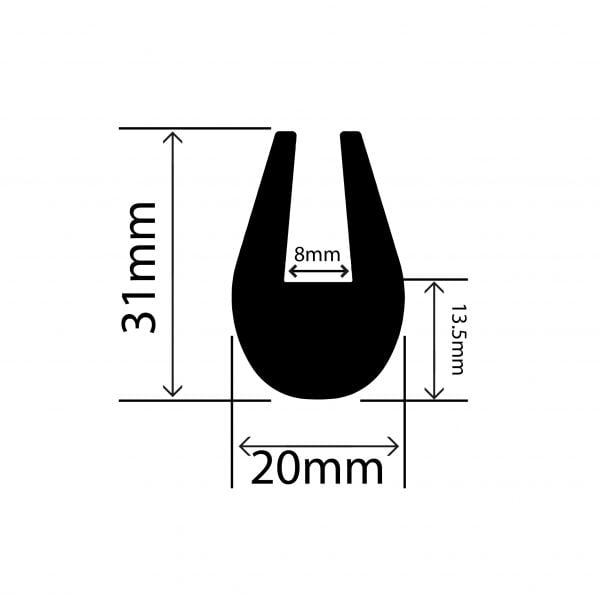

Size: 20mm x 31mm
Hardness (Shore A): 40°
Clamping range: 7mm to 8mm
Strip length: 25m
Colour: Beige

£367.81 exc. VAT£441.37 inc. VAT

Estimated Delivery:1 to 2 weeks

Key Features & Benefits

  • Approved for food contact applications
  • Beige colour highlights food stains or marks
  • Tapered design provides excellent grip
  • Adhesive not required – can be removed and reused as required
  • Round base increases impact transfer away from object
  • Excellent flexing / bending fatigue resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-50°C to 90°C)
  • 100% recyclable
  • Easy to cut

Approvals

Product Information

TPE U Channel – 20mm x 31mm | Food Contact

This TPE U channel – 20mm x 31mm is a versatile impact protector which is also safe for use around food. It is suitable for use in applications with a thickness between 7mm to 8mm.

This particular U channel features an extra thick base of 13.5mm. The additional thickness in the base offers you complete protection against a wide variety of impacts. It also provides a larger barrier between the object and any potential pressure.

The U channel is beige in colour which makes it easier for you to identify any food stains and marks. This makes maintenance simple as you can easily see when the product needs cleaning, preventing the build-up and spread of germs.

This product has a hardness (shore A) value of 40°, which ensures that it is quite a flexible product. The flexibility of this product is an important factor that enables you to use this product in a variety of applications. It also allows the product to compress under pressure which helps to preserve the life expectancy of the U channel. We use high-quality materials to ensure this product won’t deteriorate and to ensure it is safe.

Your Safety is Key

This TPE U channel – 20mm x 31mm offers protection to both you as well as the object it is on.

As it adheres to health and safety standards, this is a cost-effective tool to reduce the risk of danger. Whether you are transporting a product or simply want to avoid any hazards, this U channel is discreet and is easy to attach and remove as you please.

Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Edges on panels
  • Glazing contours
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

Properties Values
Composition Thermoplastic elastomer (TPE)
Applications Edge protection, sheet metal, glass, furniture, safety tool
Size 20mm x 31mm
Thickness 13.5mm (at thickest point)
Maximum temperature 90°C
Minimum temperature -50°C
Product tolerance class (ISO 3302-1) E2 – L2 (click here to see data)
