RC2285 Rubber TPE U Channel - 7mm x 15mmRC2285 Rubber TPE U Channel - 7mm x 15mm

TPE U Channel – 7mm x 15mm x 25m

Item Code: RC2285

To fit panel: 3mm
Material: TPE
Size: 7mm x 15mm
Hardness (Shore A): 60°
Clamping range: 3mm only
Strip length: 25m
Colour: Black

£165.75 exc. VAT£198.90 inc. VAT

Estimated Delivery:3 to 5 weeks

Key Features & Benefits

  • Large gripping arms provide wider anchor point reducing the need for adhesive
  • Excellent flexing / bending fatigue resistance
  • Excellent weathering and UV resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-40°C to 90°C)
  • 100% recyclable
  • Easy to cut

Product Information

TPE U Channel – 7mm x 15mm

This TPE U channel – 7mm x 15mm is a highly durable impact protector, suitable for use on sheets or edges with a thickness of 3mm.

The U channel has a thickness of 2mm which is relatively heavy-duty for a product of this size. The larger thickness makes this particular U channel ideal for absorbing a wide range of impacts in order to protect the object you are using it on.

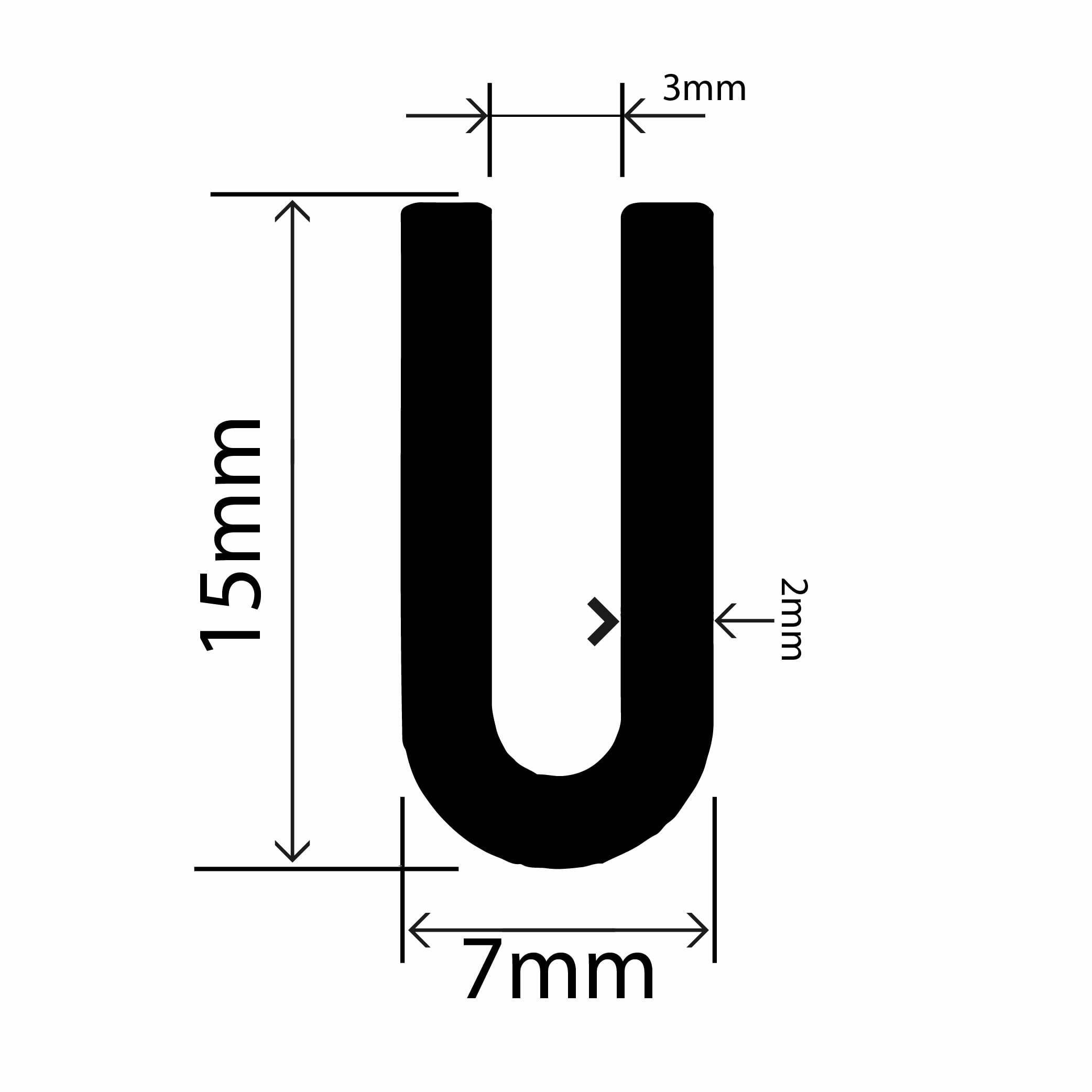

This product has a width of 7mm and a height of 15mm with 13mm gripping arms. The height of the gripping arms grants this U channel a large surface area, which enables it to make a constant connection with the sheet or edge.

This product has a hardness (shore A) of 60°, which means this is a relatively firm product. The superior firmness of this product serves to improve its impact-absorbing properties. It ensures that the U channel is less likely to compress under pressure and increases its durability.

Your Safety is Key

This TPE U channel – 7mm x 15mm offers protection to both you as well as the object it is on.

As it adheres to health and safety standards, this is a cost-effective tool for reducing the risk of danger, whether you are transporting a product or simply want to avoid any hazards. This U channel is discreet and is easy to attach and remove as you please.

Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Contours of gazing
  • Running boards
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

Properties Values
Composition Thermoplastic elastomer (TPE)
Applications Edge protection, sheet metal, glass, furniture, safety tool
Size 7mm x 15mm
Thickness 2mm
Maximum temperature 90°C
Minimum temperature -40°C
Product tolerance class (ISO 3302-1) E2 – L2 (click here to see data)
