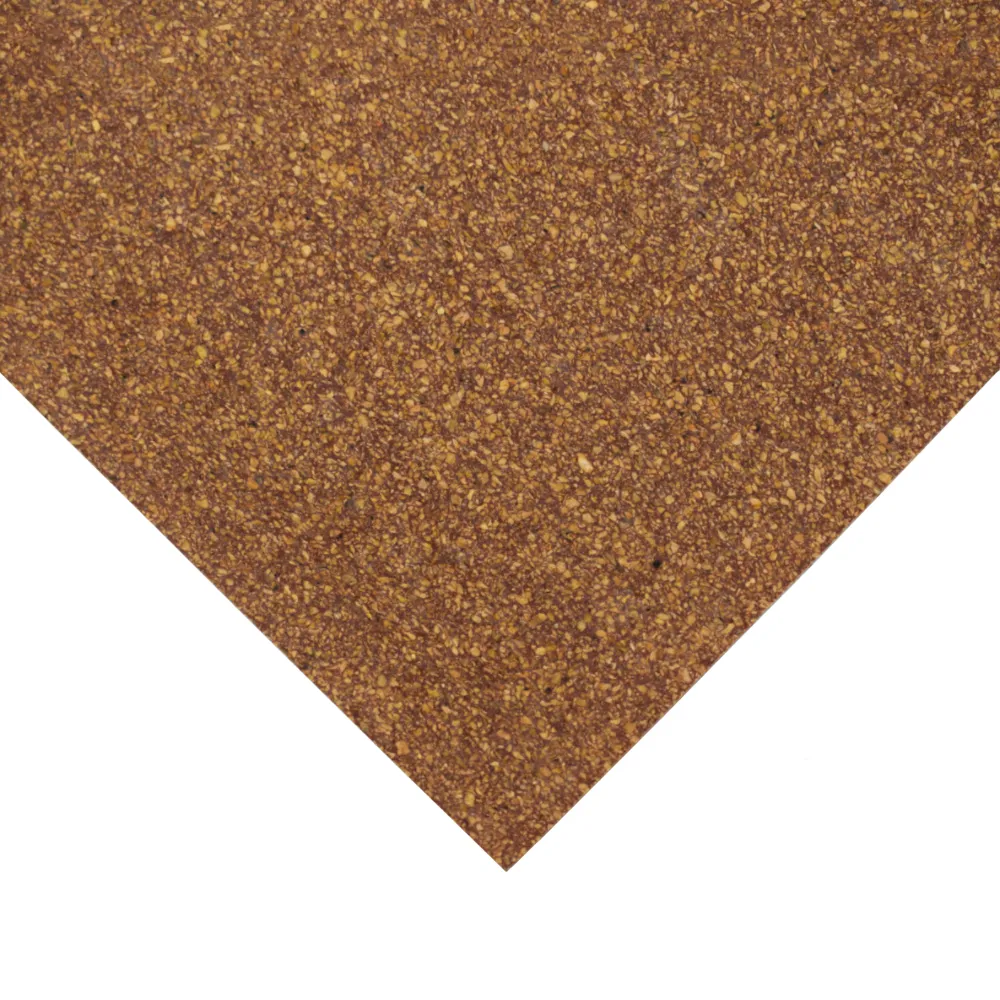

RC0306-06 - Low-Compressible Anti-Vibration Cork SheetingRC0306-06 - Low-Compressible Anti-Vibration Cork Sheeting

Anti-Vibration Sheeting (Low-Compressible) – 1m x 1m

Item Code: RC0306-06

Material: Cork, nitrile rubber
Hardness (Shore A): 65° – 75°
Size: 1m x 1m
Cork granule size: 0.5mm – 1mm
Colour: Red with cork points

from £50.00 exc. VAT
You save (%)

Estimated Delivery:3 to 5 working days

Key Features & Benefits

  • Suited for vibration control and acoustic absorption
  • Resistant to oil and fuels
  • Good flexibility
  • High resilience

Product Information

Anti-Vibration Sheet (Low-Compressible)

This is a low-compressible, medium-density cork and rubber material, ideal for acoustic absorption.

The low compressibility means the sheeting is less prone to deformation, compared to the high-compressible sheeting, making it better suited for noise reduction. The low compressibility is achieved due to the higher cork granule size, which makes the material firmer and stronger.

This sheeting is also well suited for vibration control in technical equipment rooms. It can be used to provide isolation for machinery, such as pumps, presses, motors, and rail and subway isolation pads.

This incredibly lightweight material is simple and hassle-free to install. It can be easily trimmed to fit any shape or size with a variety of standard cutting tools, however, we suggest using a more heavy-duty tool in order to reduce mess.

Range of Thicknesses Available

A range of thicknesses, from 2mm to 25mm, are available. All of the sheets feature the same cork granule size and density, however, the thicker the sheet, the greater the compression.


If this is not the product you are looking for, take a look at the rest of our range of cork sheeting.

Technical Data

Properties Values
Application Anti-vibration, shock absorption, surface protection
Product Anti-vibration sheet
Material Cork, Nitrile Rubber
Cork Granule Size 0.5-1mm
Hardness (Shore A) 65°-75°
Colour Red with cork points
Roll size 1m x 1m
Compression (at 400psi) 25-35 %
Recovery after 80%
Tensile strength 23.5kg/cm²
Temperature range -20°C to 120°C
