TPE U Channel – 18mm x 28mm x 25m

Item Code: RC436

To fit panel: 6mm
Material: TPE
Size: 18mm x 28mm
Hardness (Shore A): 60°
Clamping range: 6mm only
Strip length: 25m
Colour: Black

£232.67 exc. VAT£279.20 inc. VAT

Estimated Delivery:1 to 2 weeks

Key Features & Benefits

  • Tapered design provides excellent grip
  • Adhesive not required – can be removed and reused as required
  • Thick, round base increases impact transfer away from object
  • Excellent flexing / bending fatigue resistance
  • Excellent weathering resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-40°C to 90°C)
  • 100% recyclable
  • Easy to cut

Product Information

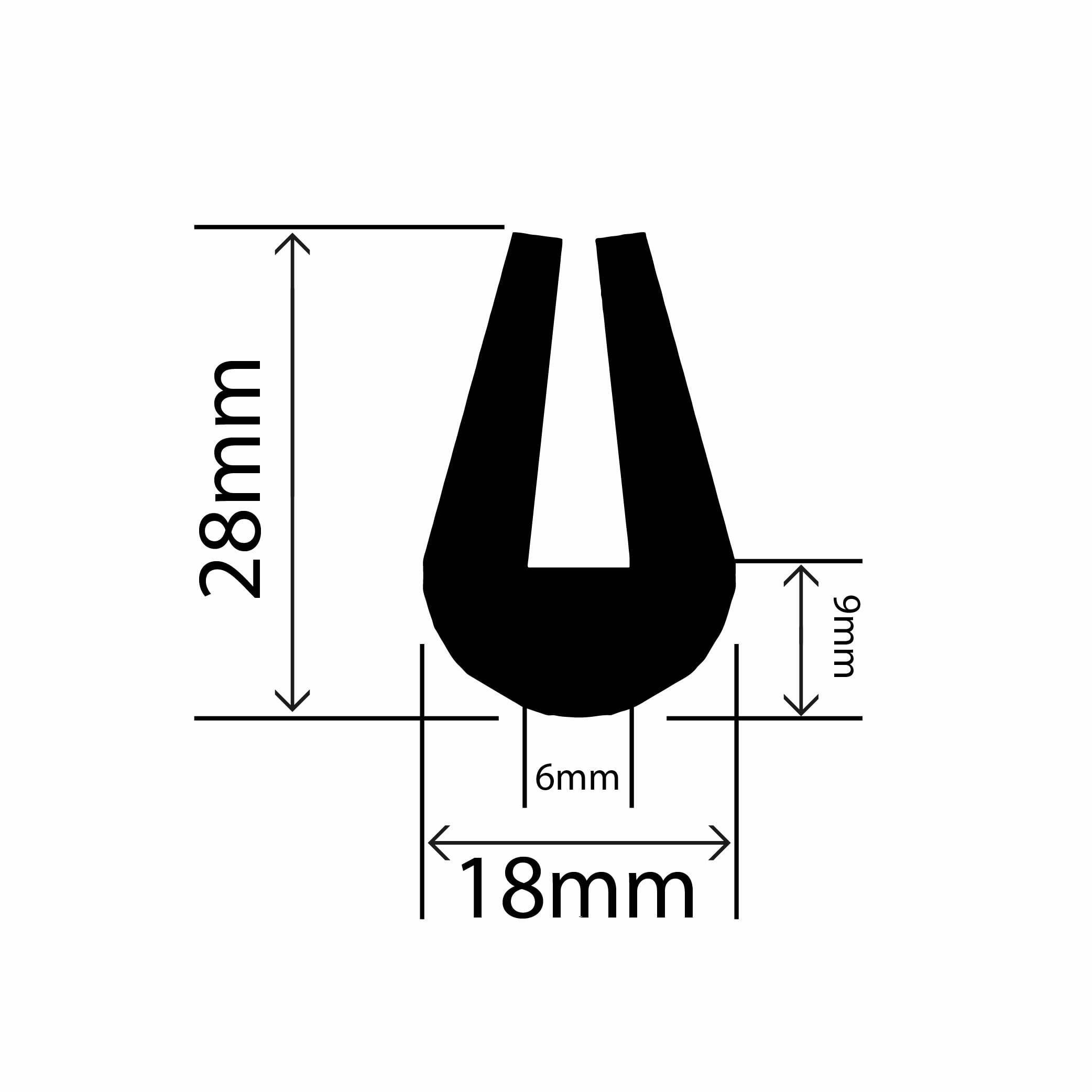

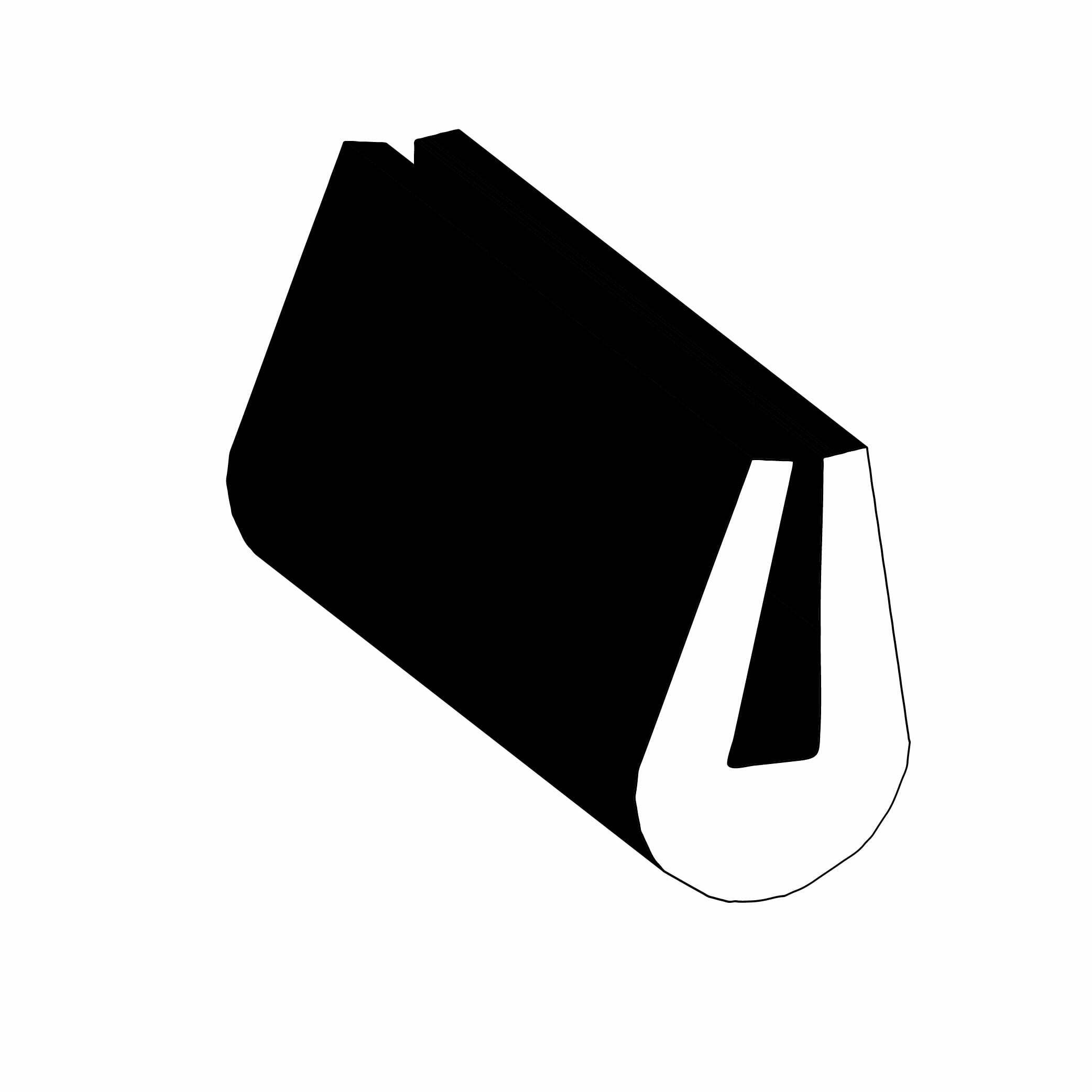

TPE U Channel – 18mm x 28mm

This TPE U channel – 18mm x 28mm is a heavy-duty impact protector, ideal for use on sheets and edges with a thickness of 6mm.

This particular U channel features a base with a thickness of 9mm, which makes it excellent at absorbing a variety of impacts. The thick base also creates a larger barrier between the fragile part of the object you are protecting and any impact or pressure. The inner channel of this product has a maximum width of 6mm. However, the channel features a tapered design which ensures a tight grip as well as reduces space consumption. The gripping properties of the channel also reduce the need for adhesive, which allows you to install and remove the product as you need.

We manufacture this U channel from a high-quality TPE material due to the unique properties it offers. TPE has the ability to stretch and compress for long periods of time before returning to its original shape. This allows the U channel to be in constant use without fear of deterioration. It also enables you to get multiple uses out of a single product. At RubberSmart, we always aim to produce high-quality products that you can depend upon.

Your Safety is Key

This rubber TPE U channel – 18mm x 28mm offers protection to both you as well as the object it is on.

As it adheres to health and safety standards, this is a cost-effective tool to reduce the risk of danger. Whether you are transporting a product or simply want to avoid any hazards, this U channel is discreet and is easy to attach and remove as you please.

Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Edges on panels
  • Glazing contours
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

Properties Values
Composition Thermoplastic elastomer (TPE)
Applications Edge protection, sheet metal, glass, furniture, safety tool
Size 18mm x 28mm
Thickness 9mm (at thickest point)
Maximum temperature 90°C
Minimum temperature -40°C
Product tolerance class (ISO 3302-1) E2 – L2 (click here to see data)
