TPE U Channel – 20mm x 24mm x 25m

Item Code: RC385

To fit panel: 12mm
Material: TPE

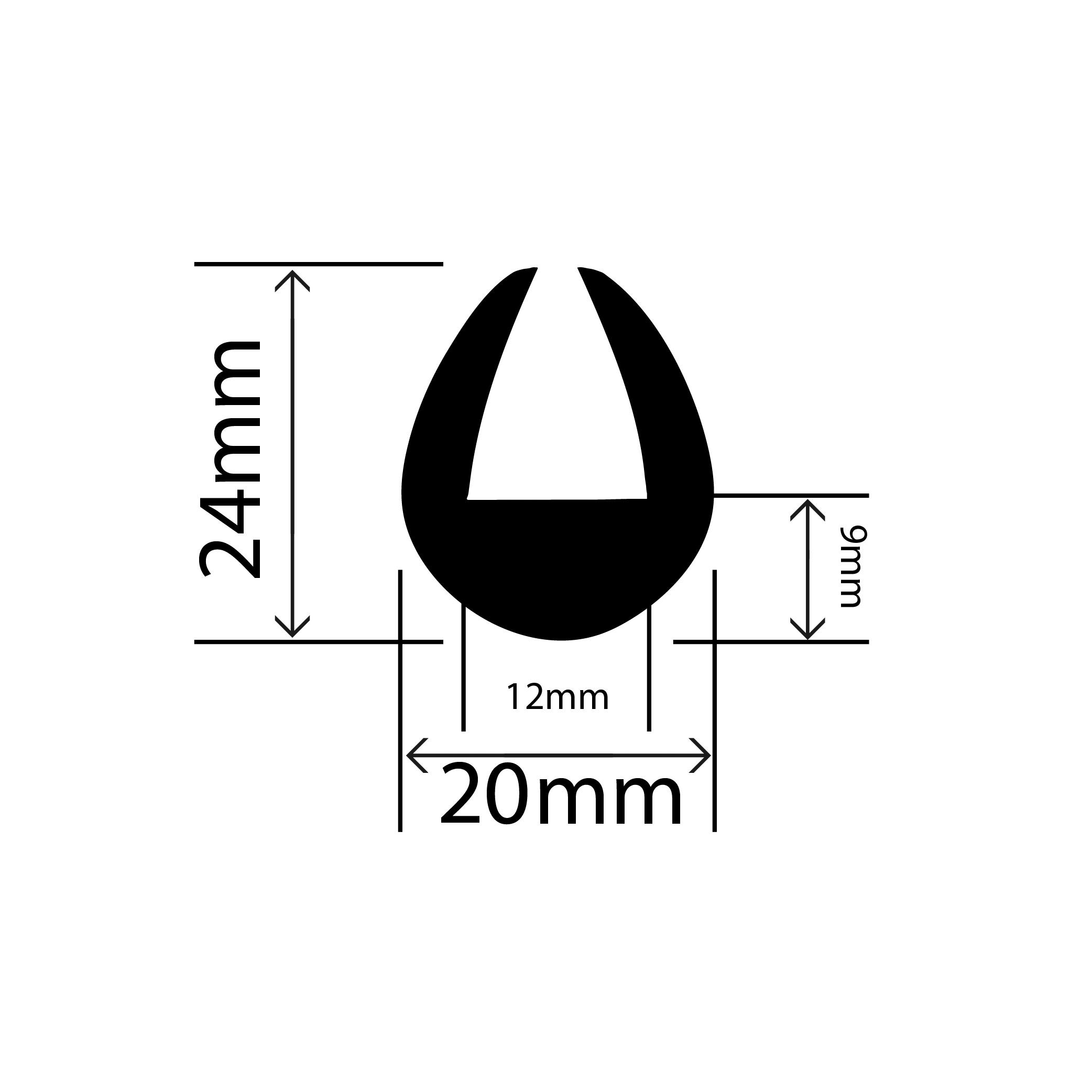

Size: 20mm x 24mm
Hardness (Shore A): 60°
Clamping range: 12mm only
Strip length: 25m
Colour: Black

£203.05 exc. VAT£243.66 inc. VAT

Estimated Delivery:3 to 5 weeks

Key Features & Benefits

  • Tapered design provides excellent grip
  • Adhesive not required – can be removed and reused as required
  • Round base increases impact transfer away from object
  • Excellent flexing / bending fatigue resistance
  • Excellent weathering resistance
  • Excellent chemical resistance
  • Good tear and abrasion resistance
  • Wide operating temperature range (-40°C to 90°C)
  • 100% recyclable
  • Easy to cut

Product Information

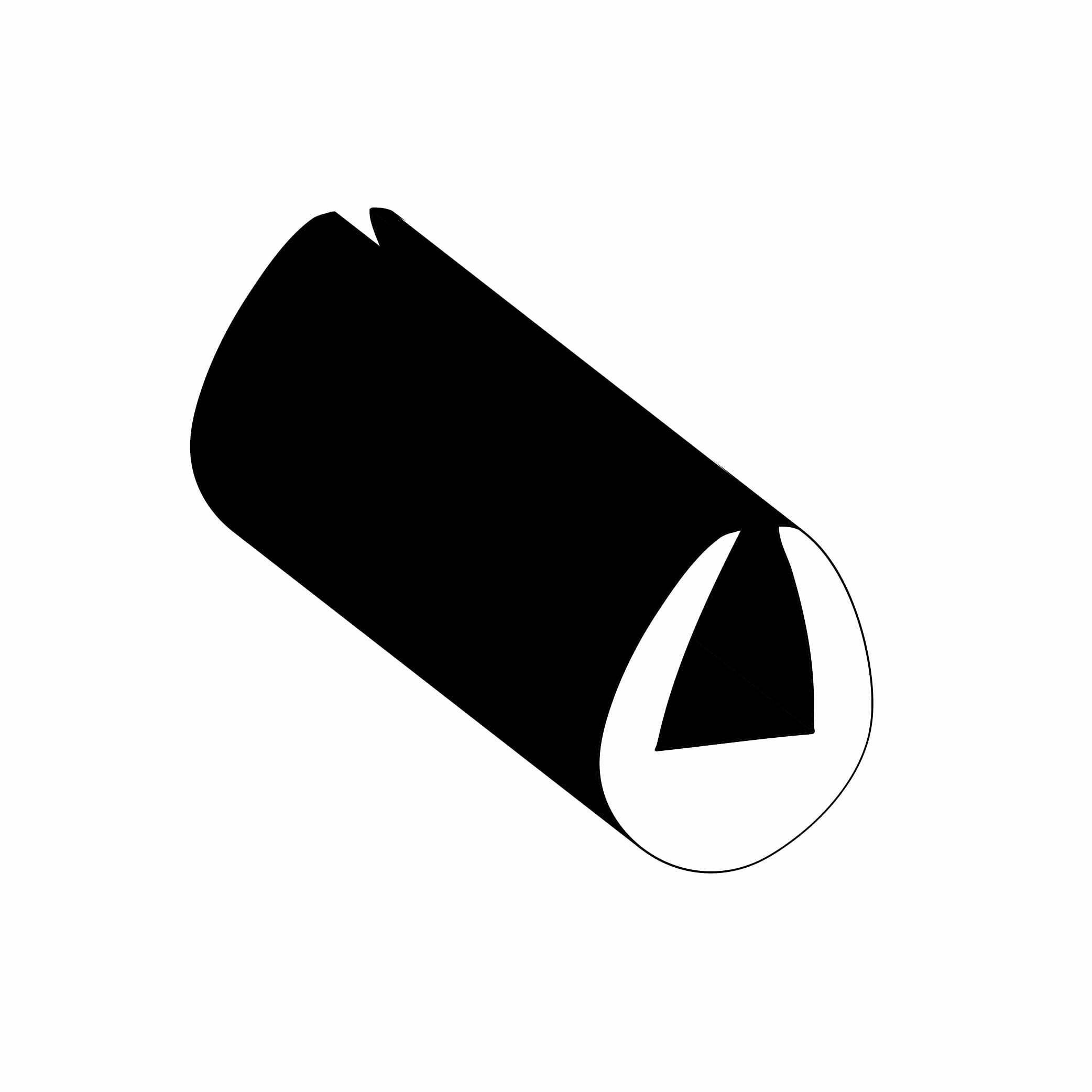

TPE U Channel – 20mm x 24mm

This TPE U channel – 20mm x 24mm is a highly versatile and durable impact protector. It is suitable for use on sheets and edges with a thickness of 12mm.

This particular U channel has a base thickness of 9mm which gives superior protection to the areas which need it most. As the base is also round, this enables higher compression rates to transfer impact away from the object.

The inner channel of this particular product features a tapered design to increase gripping properties. It ensures that the product is able to maintain a tight grip at all times while also reducing the space the U channel requires.

We manufacture this product from a high-quality TPE material due to the unique properties it offers. TPE has the ability to stretch and compress for long periods of time before returning to its original shape. This allows our U channels to be in constant use and ensures that you can use them in a wide variety of applications. It also enables you to get multiple uses out of a single U channel.

Your Safety is Key

This TPE U channel – 20mm x 24mm offers protection to both you as well as the object it is on.

As it adheres to health and safety standards, this is a cost-effective tool to reduce the risk of danger. Whether you are transporting a product or simply want to avoid any hazards. This U channel is discreet and is easy to attach and remove as you please.

Your safety is something we take seriously here at RubberSmart. This is why we do extensive testing to ensure our products are all practical, as well as safe.

Perfect for a Variety of Applications

  • Sheet metal
  • Contours of glazing
  • Running boards
  • Furniture
  • Vending machines
  • Stairs



If this isn’t the product you are looking for, take a look at the rest of our range of rubber U channels.

Technical Data

Properties Values
Composition Thermoplastic elastomer (TPE)
Applications Edge protection, sheet metal, glass, furniture, safety tool
Size 16mm x 24mm
Thickness 9mm
Maximum temperature 90°C
Minimum temperature -40°C
Product tolerance class (ISO 3302-1) E2 – L2 (click here to see data)

PDFs



Datasheet
